⚑ Why Do Power Line Carrier Interfaces Need Protection?

Power Line Carrier (PLC) is a "power-on-demand" technology that directly uses power lines to transmit data or voice. It is widely used in:

  • Distribution automation
  • Smart meters/concentrators
  • Power monitoring terminals
  • Industrial and energy management systems

πŸ‘‰ However, the communication environment is very complex, making it susceptible to the following threats:

  • Lightning surges
  • Transient overvoltages caused by switching operations
  • Peak pulses generated by inductive loads
  • Electrostatic discharge (ESD) from frequent plugging/unplugging and maintenance

These interferences can easily affect core chips directly through communication interfaces such as RJ-45 and USB, causing communication abnormalities, disconnections, PHY/MCU damage, and product field failures, leading to increased return rates.

Therefore, interface-level protection is essential in Power Line Carrier devices.

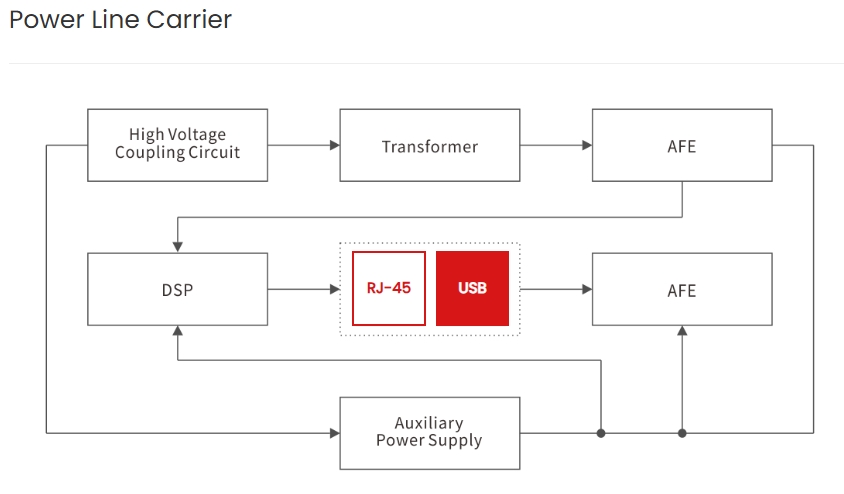

Enhancing Power Line Carrier Reliability: Semiware RJ-45 & USB Interface Protection Solutions-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

The following section analyzes Semiware's protection solutions for Power Line Carrier RJ45 and USB interfaces.πŸ‘‡

1️⃣ RJ45 Interface

The RJ-45 interface is commonly used to connect Power Line Carrier devices to host computers, concentrators, or debugging terminals, and is a high-risk entry point for electrostatic discharge (ESD) and surges.

Semiware's Protection Approach for RJ-45 Interfaces

We adopt a "tiered protection" structure, allowing different devices to perform their specific functions:

πŸ”Ή Gas Discharge Tube (GDT) – First Line of Defense

SG3225B800 – https://en.semiware.com/gas-discharge-tubes/sg3225b800/

  • High withstand voltage (800V)
  • High current carrying capacity (kA level)
  • Specifically designed for lightning strikes and high-energy surges

πŸ‘‰ The GDT is usually placed on the outermost side of the interface to discharge strong surge energy from power lines or external networks.

πŸ”Ή Protection Thyristor – Intermediate Protection Layer

  • Surge capacity up to 6kV
  • High current withstand capability (100A level)
  • Stable clamping, high reliability

πŸ‘‰ Ideal for power line carriers and other equipment that are frequently online and cannot be frequently repaired.

πŸ”Ή ESD Diode – Fine Protection, Protecting the Chip

πŸ‘‰ These ESD devices have low capacitance, fast response, and do not affect signal integrity, making them ideal for RJ-45 differential signal lines.

2️⃣ USB Interface

USB interfaces in Power Line Carriers are commonly used for:

  • Local debugging
  • Data upgrades
  • Parameter configuration

However, frequent plugging and unplugging, and direct human contact, lead to a high ESD risk.

Semiware's USB Interface Protection Solution

For the USB D+/Dβˆ’ lines, we recommend using:

SE41T06U5.0LB ESD Diode - https://en.semiware.com/esd-diodes/sr05/

  • Operating Voltage: 5V
  • ESD Protection: Β±15kV
  • Low capacitance (2pF), does not affect USB communication
  • SOT-143, small size, easy layout

πŸ‘‰When plugging in a USB flash drive or data cable, static electricity is first "disposaled" by it.

πŸ›‘οΈ Semiware's Product Advantages

Combined with Power Line Carrier applications, our devices offer several key advantages:

βœ… High surge capability: Adaptable to complex power system conditions

βœ… Low capacitance design: Does not affect communication quality

βœ… Multi-device combination solution: GDT + Thyristor + ESD, providing more comprehensive protection

βœ… Domestic alternative: Can replace international brands, with stable delivery times and high cost-effectiveness

βœ… Long-term reliability verification: Suitable for power equipment with 10+ year lifespan requirements

πŸ—ΊοΈ Conclusion

In Power Line Carrier systems, communication interfaces are typically the most prone to problems.

By strategically configuring semiconductor electronic components at key interface locations such as RJ-45 and USB, the stability and reliability of Power Line Carrier equipment under lightning strikes, surges, and electrostatic discharge conditions can be significantly improved, reducing field failure rates and extending product lifespan.

Looking for a reliable protection solution for your Power Line Carrier design?
Contact Semiware to get a customized RJ-45 and USB interface protection solution with proven surge performance, stable supply, and cost-effective alternatives to global brands.

πŸ‘‰ Get Your Power Line Carrier Protection Solution Today

https://en.semiware.com/applications/power-line-carrier
