Overview
As the home appliance industry moves towards higher energy efficiency and smarter designs, variable frequency air conditioners have become mainstream.
Compared to traditional fixed-frequency air conditioners, variable frequency air conditioners integrate inverter drives, power management, MCU control, and multiple communication interfaces. These low-voltage electronic circuits are particularly sensitive to transient overvoltages.
Therefore, transient voltage suppressor diodes have become indispensable protection devices in variable frequency air conditioner designs, and the SMF15CA is a widely used one.

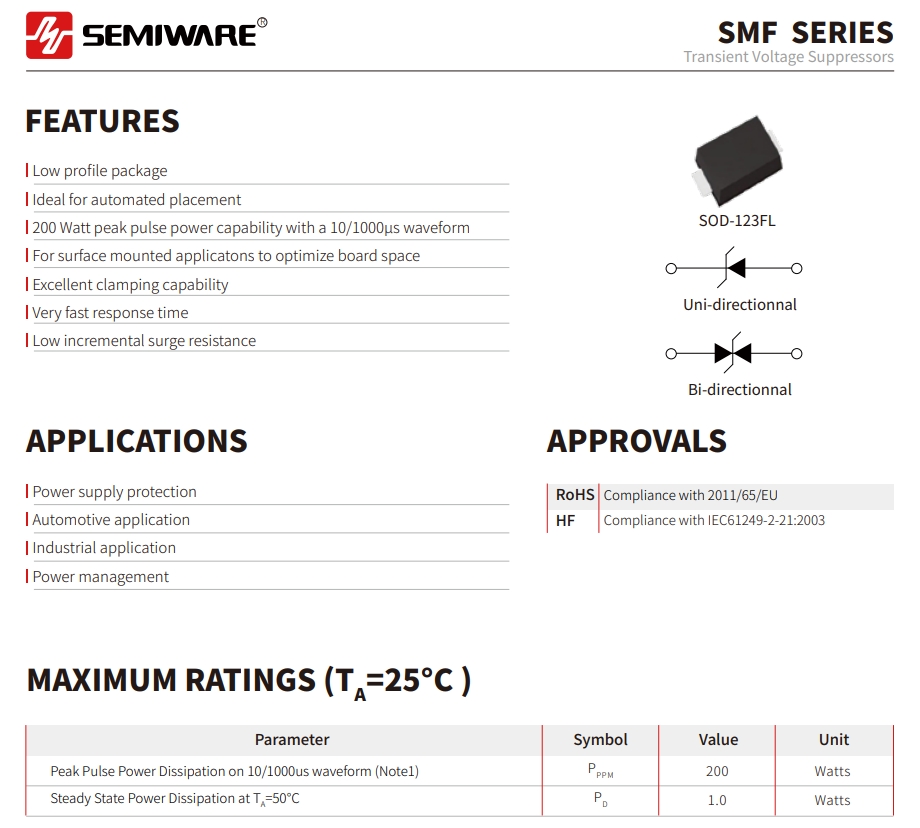

🔋 SMD15CA Key Parameters and Application Significance
- Reverse Working Voltage (Vrwm): 15V
Suitable for 12V/15V auxiliary power supply systems. Remains off under normal operating voltage, without affecting system operation. - Breakdown Voltage (Vbr): 16.7V – 18.5V
Fast breakdown in the event of abnormal overvoltage, limiting the voltage to a safe range and preventing damage to downstream ICs. - Reverse Leakage Current (Ir): ≤ 8.2μA
Extremely low leakage current, meeting the stringent requirements for standby power consumption and energy efficiency in household appliances. - Peak Pulse Current (Ipp): 24.4A (10/1000μs)
Effectively handles transient impacts such as power surges and inductive load switching. - Peak Pulse Power (Ppp): 200W (10/1000μs)
Provides reliable transient energy absorption in a compact package, suitable for high-density PCB designs.
📌 In summary: The voltage rating and surge capability of the SMF15CA are perfectly matched to the protection requirements of the low-voltage control circuit in inverter air conditioners.
❓ Why Does a Variable Frequency Air Conditioner Need Transient Protection on the Low-Voltage Side?
In variable frequency air conditioners, common voltage systems include:
- AC 220V main power supply (high-voltage side)
- DC bus above 300V (power side)
- 12V/15V low-voltage control and drive power supply (weak current side)
Although the high-voltage side already has protection such as varistors and surge absorbers, the low-voltage control circuit is more prone to failure due to transient spikes. Common risks include:
- MCU malfunction or burnout
- Long-term reliability degradation of the drive IC
- Communication interface abnormality or failure
👉 The value of the SMF15CA lies in its low-voltage, fast, and precise clamping.
✅ Typical Applications of SMF15CA in Inverter Air Conditioners
1️⃣ Low-voltage Auxiliary Power Supply Protection (12V / 15V)
- MCU Power Supply
- Driver Chip Power Supply
- Analog Sampling Circuit
Installation Method: Power line in parallel to ground
Function: Absorbs transient overvoltages caused by compressor start-up/shutdown or grid disturbances
2️⃣ Inverter Control Board (Control Side, not Power Side)
- IGBT / IPM Control Circuit
- Driver IC Auxiliary Power Supply
SMF15CA effectively suppresses transient spikes coupled to the control circuit by high-frequency switching.
3️⃣ Communication and Sensor Interface
- Indoor Unit ↔ Outdoor Unit Communication Line
- Temperature, Pressure, and other sensor signal lines
Bidirectional structure suitable for interfaces with uncertain polarity, enhancing system resistance to lightning strikes and EFT.
Why Choose SMF15CA for Variable Frequency Air Conditioners?
| Selection Requirements | Advantages of SMF15CA |
| Voltage Matching | Well-suited for 12V / 15V low-voltage systems |
| Polarity Requirement | Bidirectional design, no polarity concern |
| Response Speed | Nanosecond-level response, faster than MOVs |
| Package Size | Compact SMF package, ideal for high-density PCB layouts |
| Cost & Maturity | Proven solution in the home appliance industry with stable supply |
In variable frequency air conditioning projects, Semiware's SMF15CA is often used to replace the following brands:
- Littelfuse
- Vishay
- Bourns
As long as the electrical parameters, packaging, and reliability meet industry standards, there is no need to redesign the PCB, enabling multi-source supply and effectively reducing procurement risks and costs.
Conclusion
In variable frequency air conditioning systems, transient overvoltages are not isolated incidents. Proper selection and layout of the SMF15CA can not only improve the overall system's anti-interference capabilities but also extend the lifespan of critical electronic components.
👉 For SMF15CA specifications, samples, or TVS selection advice for variable frequency air conditioning systems, please contact us.
