📌 What is a 1N5819?
The 1N5819 is a low-forward-voltage Schottky diode widely used in power supply rectification, reverse polarity protection, and high-efficiency DC-DC converters. Packaged in the compact SOD-123FL, it offers strong thermal stability, high reliability, and minimal reverse leakage, making it suitable for space-constrained and power-sensitive applications.

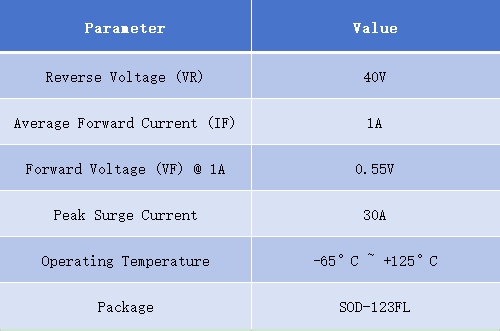

📌 1N5819 Electrical Specifications
📌 Key Features of 1N5819
- Low Forward Voltage Drop (0.55V typical at 1A) – Minimizes power loss and improves efficiency.
- Fast Switching Speed – Ideal for high-frequency applications like SMPS and switching regulators.
- High Surge Current Capability – Handles up to 30A non-repetitive surge current.
- Compact & Robust – Available in SOD-123FL package for easy PCB mounting.
📌 1N5819 Applications
- Power Supply Rectification – Efficiently converts AC to DC.
- Reverse Polarity Protection – Safeguards circuits from damage.
- DC-DC Converters & Buck/Boost Circuits – Enhances performance in switching regulators.
- Solar Panels & Battery Chargers – Reduces energy loss in low-voltage systems.
1N5819 Datasheet

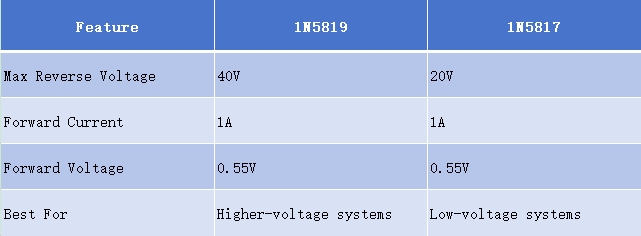

📌 What is the Difference Between 1N5819 and 1N5817?
The main difference between 1N5819 and 1N5817 lies in their voltage withstand capability: 1N5819 can withstand a reverse voltage of 40V, while 1N5817 only supports 20V. Therefore, 1N5819 is more suitable for higher voltage scenarios.
📌 1N5819 Equivalent
- SS14
- SS16
❓ FAQs
Q: What is the forward voltage of 1N5819?
A: Approximately 0.55V at 1A, depending on temperature.
Q: Is 1N5819 suitable for reverse polarity protection?
A: Yes — it is commonly used in battery-driven equipment for input protection.
Q: What is the price and MOQ for 1N5819?
A: MOQ starts at 3,000 pcs, with discounted volume pricing available.
If you need bulk purchase, price quote, availability, or datasheet, contact Semiware and our sales will support you with:
- real-time stock
- lead time
- competitive pricing
- free samples for qualified projects
📩 Contact us anytime — we’re ready to support your production needs.
