What is SS24 Diode?
Engineered for superior performance, the SS24A Schottky barrier diode delivers ultra-low forward voltage drop and exceptionally fast switching capabilities, making it the ideal choice for high-frequency rectification in switch-mode power supplies, DC-DC converters, and voltage clamping applications. With a robust 40V reverse voltage rating and 2A forward current capacity,the device minimizes power loss while ensuring stable operation in consumer electronics, power management systems, and LED drivers.

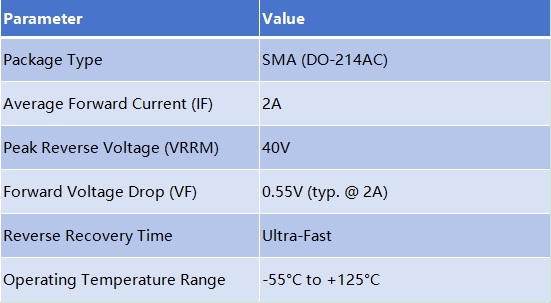

SS24 Diode Key Features
SS24 Diode Typical Applications
- Switching power supplies
- Freewheeling diodes
- Reverse polarity protection
- Solar panels & battery charging circuits
- Portable electronics
Advantages of SS24 Schottky Rectifier Diode
Compared to conventional PN-junction diodes, the SS24 diode offers:
- Lower power dissipation due to reduced forward voltage.
- Faster switching speeds, improving efficiency in high-frequency applications.
- Better thermal performance in compact designs.
SS24 Diode Data Sheet
Product Line
For more product information, please visit our official website：
https://en.semiware.com/schottky-diode/ss24a
FAQ
1️⃣Q:What is the difference between SS24 and SS34 diode?
A:Both SS24 and SS34 are Schottky rectifier diodes with the same SMA (DO-214AC) surface-mount package and a 40 V reverse voltage rating. The key difference lies in their current handling capability:
SS24 is rated for 2 A average forward current,SS34 is rated for 3 A average forward current
2️⃣Q:Is SS24 suitable for DC-DC converters and switching power supplies?
A:Yes, the SS24 Schottky diode is well-suited for use in DC-DC converters and switching power supplies due to its low forward voltage drop (typically around 0.5 V) and fast switching speed, which help improve overall power efficiency.
3️⃣Q:Can I replace a normal diode with a Schottky diode?
A:In some cases, yes, but it depends on the circuit’s requirements. Schottky diodes offer a lower forward voltage drop and faster switching speed, making them ideal for high-frequency or low-voltage applications where efficiency is critical.
Related Products
- SS14 Schottky Diode (1A,40V,SMA package)
- SS34 Schottky Diode (3A,40V,SMA package)
- 1N5819 Schottky Diode (1A,40V,DO-41 package)
