SMAJ15CA 15V 400W Bidirectional TVS Diode: Parameters and Application Guide

Overview

In power supplies, automotive electronics, and industrial control equipment, circuits frequently encounter sudden voltage spikes, such as power surges, inductive load switching, and other transient disturbances. Although these pulses are short-lived, they can damage sensitive components such as MOSFETs, MCUs, and power ICs.

TVS diodes (Transient Voltage Suppressors) are common protection devices used to suppress these transient overvoltages.

The SMAJ15CA is a 15V, 400W bidirectional TVS diode in a compact SMA surface mount package, suitable for surge protection in various power supplies and electronic devices.

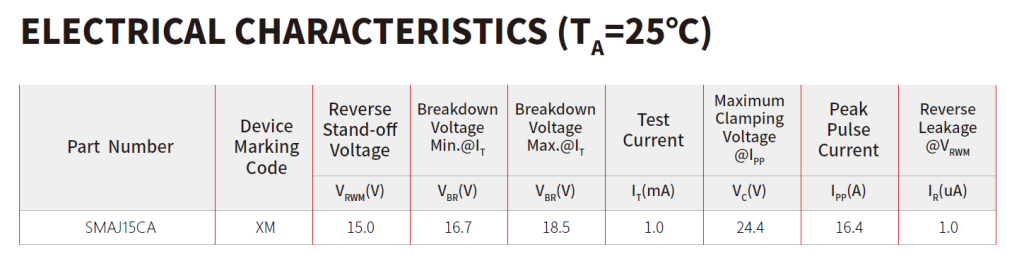

I. Main Parameters of SMAJ15CA TVS Diode

II. Key Features of SMAJ15CA TVS Diode

2.1 400W Peak Pulse Power

The SMAJ15CA has a peak pulse power capability of 400W, which can be used to suppress transient surges in power supplies and electronic equipment.

2.2 15V Stand-Off Voltage

The 15V VRWM makes it suitable for some 12V/15V power supplies and electronic control circuits, but actual selection still needs to be confirmed in conjunction with the maximum normal operating voltage.

2.3 Bidirectional Protection

The bidirectional structure can suppress transient voltages in both positive and negative directions, making it suitable for circuits requiring bidirectional transient protection.

2.4 Excellent Clamping Capability

The maximum 24.4V clamping voltage helps limit line voltage during surges, thereby reducing the impact of transient overvoltages on downstream devices.

2.5 Fast Response

TVS features a fast response characteristic, enabling it to quickly enter protection mode when transient voltages occur.

III. Specific Application Analysis of SMAJ15CA

3.1 DC Power Input Protection

At 12V/15V power input levels, the SMAJ15CA can be used to suppress external transient surges, protecting downstream DC/DC converters, MOSFETs, and power management ICs.

For power interfaces, TVS typically needs to be used in conjunction with fuses, MOSFETs, or other protection devices, rather than performing all protection functions alone.

3.2 Industrial Control and PLC

PLCs, motor controllers, industrial control boards, and other devices often contain inductive loads such as relays, motors, and solenoid valves. Load switching may generate transient voltages; the SMAJ15CA can serve as a surge protection device for power supplies or related interfaces.

3.3 Power Management Devices

The SMAJ15CA can also be used in power management modules, charging equipment, and other electronic control systems to suppress transient overvoltages that may occur at the input.

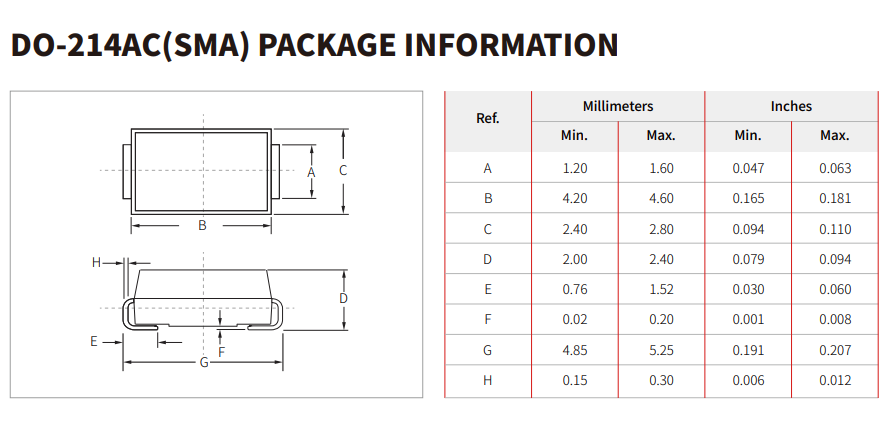

DO-214AC(SMA) Package Dimensions

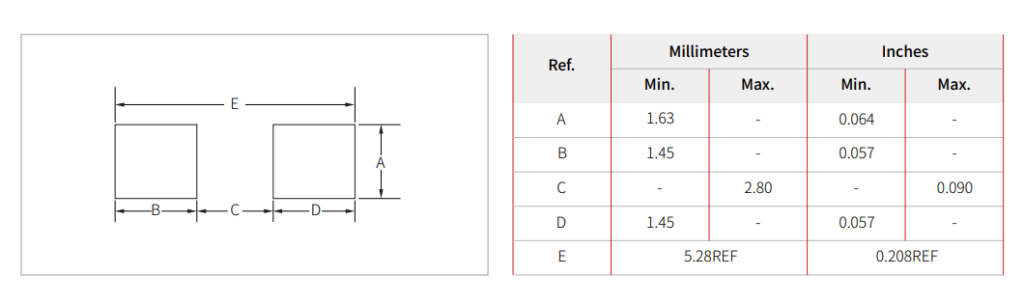

SMAJ15CA Layout Dimensions

IV. Substitutability and Advantages of Semiware SMAJ15CA

4.1 Parameter Matching

The core electrical parameters of the Semiware SMAJ15CA are consistent with mainstream SMAJ15CA products on the market (Littelfuse, STMicroelectronics).

4.2 Supply Chain and Cost Advantages

Semiware has its own TVS product line, enabling more effective control over product supply, production lead time, and costs. For bulk purchases and long-term projects, this means more stable supply capabilities, more controllable lead times, and more competitive costs.

4.3 Technical and Selection Support

Semiware's technical and R&D teams can provide targeted TVS selection support based on customers' actual circuit design and protection needs.

Conclusion

With its 15V operating voltage, 400W peak pulse power, bidirectional protection, and compact SMA package, the SMAJ15CA has become a common TVS protection choice in power supplies, industrial control, automotive electronics, and power management applications.

For customers looking for an SMAJ15CA replacement or a second supplier, please contact us.
