In power input, industrial control, and other electronic devices, circuits may be affected by transient overvoltages such as surges and power switching. TVS diodes are typically used in these scenarios to quickly conduct when a transient voltage occurs, limiting the voltage within a certain range.
The SMAJ58A is a 58V unidirectional TVS diode in an SMA surface-mount package with a peak pulse power of 400W. It is suitable for DC power supplies and other circuits with defined polarity. For designs requiring transient overvoltage protection within limited PCB space, the SMAJ58A is a common TVS device choice.
I. SMAJ58A TVS Diode Main Parameters
| Parameter | SMAJ58A |
| Reverse Stand-Off Voltage (VRWM) | 58V |
| Breakdown Voltage (VBR) | 64.4–71.2V |
| Peak Pulse Power (PPP) | 400W |
| Maximum Clamping Voltage (VC) | 93.6V |
| Peak Pulse Current (IPP) | 4.3A |
| Polarity | Unidirectional |
| Package | SMA |
VRWM, VBR, and VC correspond to different operating states:
- VRWM is mainly used to determine whether the TVS can remain off during normal operation;
- VBR indicates the voltage range within which the device enters the breakdown region;
- VC is used to determine the maximum clamping voltage that the protected circuit may withstand during a surge.

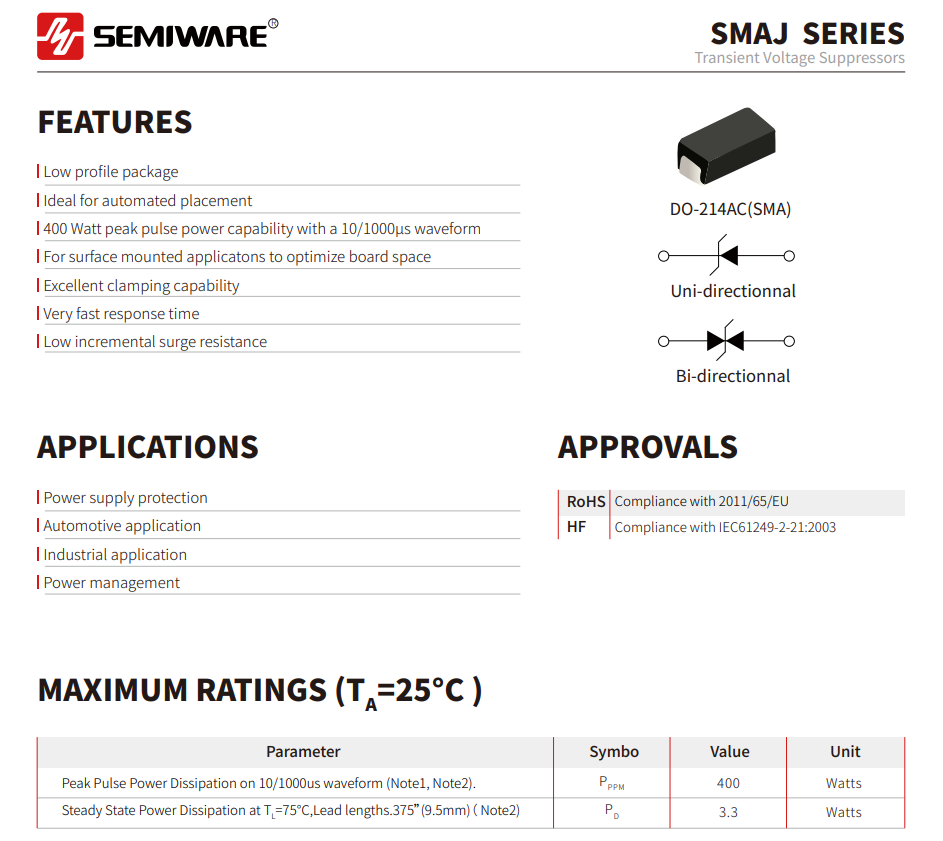

II. Key Features of SMAJ58A TVS Diode
2.1 400W Peak Pulse Power
- The SMAJ58A boasts a 400W peak pulse power capability, enabling it to absorb short-term transient energy in power supply lines.
2.2 58V Reverse Operating Voltage
- The 58V VRWM provides a clear selection reference for the normal operating voltage, suitable for DC power supply lines of the corresponding voltage level.
2.3 Fast Transient Response
- TVS diodes can quickly enter the conduction state when transient overvoltages occur, clamping sudden voltage surges and reducing the impact of high-voltage transients on downstream devices.
2.4 Lower Surge Incremental Resistance
- Lower incremental resistance helps reduce voltage changes during high-current surges, resulting in more stable clamping performance.
2.5 SMA Surface Mount Package
- The SMA package is suitable for automated placement and meets the space and assembly efficiency requirements of common PCB surface mount designs.
III. How Does the SMAJ58A Provide Circuit Protection?
TVS diodes do not conduct continuously under normal operating conditions. Its main function is to protect against transient voltages for a short period.
3.1 Under normal operation:
When the line voltage is lower than the reverse operating voltage of the TVS, the SMAJ58A maintains a high impedance state, having minimal impact on normal circuit operation.
3.2 During transient overvoltage:
When the line voltage rises rapidly and enters the TVS's breakdown region, the SMAJ58A quickly turns on.
3.3 During voltage clamping:
After the TVS turns on, it absorbs some transient energy and limits the line voltage within a certain range, thereby reducing the risk of transient overvoltage impacts on downstream MOSFETs, ICs, and other sensitive devices.
Therefore, the selection of a TVS requires consideration of the normal operating voltage, breakdown voltage, clamping voltage, and the withstand voltage of the protected device.
IV. SMAJ58A TVS Diode Applications
The SMAJ58A is mainly suitable for the following scenarios:
- DC power input protection
- Power management circuits
- Industrial control equipment
- Electronic equipment power lines
- Automotive electronic systems
For DC power lines, the SMAJ58A is usually connected in parallel across the lines requiring protection. When a transient overvoltage occurs, the TVS quickly turns on and clamps the voltage.
V. What Should Be Considered When Selecting an SMAJ58A?
When selecting a 58V TVS diode, it is recommended to focus on the following three parameters:
① VRWM: Normal operating voltage
- Under normal operating conditions, the line voltage should be lower than the reverse operating voltage of the TVS; otherwise, unnecessary conduction may occur.
② VBR: Breakdown voltage
- The breakdown voltage range of the SMAJ58A is 64.4–71.2V. When the transient voltage exceeds this range, the TVS begins to enter a significant conduction state.
③ VC: Maximum clamping voltage
- The maximum clamping voltage of the SMAJ58A is 93.6V. The maximum withstand voltage of the protected device must be higher than the actual possible clamping voltage.
VI. Why Can the Semiware SMAJ58A Be Compared to Littelfuse?
6.1 Parameter Compatibility
- The Semiware SMAJ58A is compatible with Littelfuse in key parameters such as operating voltage, breakdown voltage, clamping voltage, and peak pulse power.
6.2 More Flexible Delivery Time
- Semiware has its own production line and can provide corresponding delivery time solutions based on customer samples and batch requirements, helping to reduce project delays caused by excessively long lead times.
6.3 Cost Advantage
- As the original manufacturer, Semiware can offer more competitive prices while meeting product performance and application requirements, helping customers reduce BOM costs and long-term procurement costs.
6.4 Product Reliability
- Semiware has EMC testing and a complete quality control process to strictly control product quality
6.5 Alternative Selection Support
- The Semiware technical team can provide samples and selection support based on customers' specific circuit and parameter requirements.
