SMD0603P035TF PTC Fuse Solutions for Compact and Portable Electronic Devices

➡️ Where Are Overcurrents Most Likely to Occur in Ultra-small Electronic Devices?

With the miniaturization of electronic designs, overcurrent protection devices have become essential components in space-constrained circuits. In ultra-small electronic devices such as wearable electronics, smart sensors, wireless modules, USB peripherals, and portable consumer electronics, overcurrent, short circuits, or abnormal load conditions can occur frequently.

These failures can easily damage sensitive components such as integrated circuits (ICs), batteries, and power management circuits, reducing product reliability and lifespan.

➡️ What Are Overcurrent Protection Devices in Miniature Circuits?

Overcurrent protection devices are designed to protect electronic circuits by limiting or interrupting excessive current. When the current exceeds the safe operating range, these devices automatically respond, protecting critical components from thermal or electrical damage. They act like "circuit safety valves," helping to prevent permanent failures while maintaining system stability. PTC resettable fuses are widely used overcurrent protection devices in modern electronic devices.

➡️ What Is the SMD0603P035TF PTC Self-resetting Fuse?

The SMD0603P035TF is an ultra-miniature PTC self-resetting fuse in a compact 0603 surface-mount package, developed for low-current, high-density electronic applications. In the event of an overcurrent condition, the device rapidly increases its resistance to limit the current. After the fault is cleared, it automatically resets to its normal operating state, providing reliable protection without the need for replacement.

With its small size and stable performance, the SMD0603 series is ideal for protecting portable, wearable, and miniaturized electronic devices.

➡️SMD0603P035TF Key Electrical Parameters

⭐ Typical Applications of SMD0603P035TF Resettable PTC Fuses

• USB power and charging interfaces
• Mobile power banks and battery-powered devices
• Smart handheld electronics
• Consumer and light industrial electronic equipment

In these applications, the ability to automatically recover after a fault helps protect both the device and the end user.

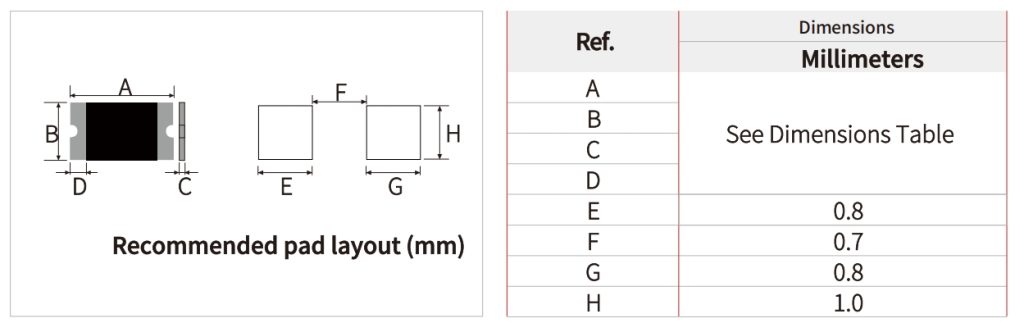

➡️ SMD0603 Dimensions

💎 Why Choose Semiware's PTC Fuse Solutions?

• Semiware is a professional manufacturer of self-resetting PTC fuses, offering a full range of SMD packaged products, including 0603，2920, 1206, 1812, and 0805. Widely used in consumer electronics, power supply, and industrial applications, these fuses are designed to provide reliable overcurrent protection.
• With stable volume production and rigorous quality control, Semiware provides customers with samples, detailed datasheets, and technical support throughout the design and procurement stages. We also offer cross-reference advice to help customers quickly find suitable alternatives.
• All Semiware PTC fuses comply with RoHS and REACH standards, ensuring compliance with global regulations and guaranteeing long-term stable supply.

If you are designing compact circuits or upgrading overcurrent protection, Semiware provides a full range of SMD0603 PTC fuses with stable performance and flexible supply. Detailed datasheets, cross-reference support, and technical guidance are available to help you select the right fuse for your application.

👉 Contact us to request product specifications, samples, or cross-reference recommendations.

📩 [email protected]

❓ FAQs

1.What is a PPTC fuse?

A PPTC fuse is a resettable overcurrent protection device that increases its resistance when excessive current flows and automatically resets after the fault is removed.

2.How does it compare to traditional fuses?

Traditional fuses are single-use and must be replaced after tripping, while PPTC fuses reset automatically and require no maintenance—ideal for consumer and portable electronics.

3.How does a PPTC fuse work?

During overcurrent, the polymer material heats up and expands, sharply increasing resistance to limit current. After cooling, it returns to its low-resistance state, restoring normal operation.

4.What is the difference between PPTC and PTC?

PPTC is a polymer-based PTC device designed specifically for resettable overcurrent protection, while standard PTC components are typically used for temperature sensing or inrush current limiting.

5.What is the difference between NTC and PTC?

NTC resistance decreases as temperature rises (used for sensing and inrush limiting), while PTC resistance increases with temperature (used for protection or heating functions).
