On-Board Charger

Build Semiware into your application circuit

Summary Circuit Diagram Documents Others

Summary

EV on-board chargers (OBCs) are directly connected to the AC grid (AC 220V/380V) and the vehicle's high-voltage DC battery (DC 400V/800V) during operation. They are vulnerable to lightning surges, switching surges, and electrostatic discharge. MOVs and GDTs are required to eliminate electromagnetic interference and spike voltages from the grid.

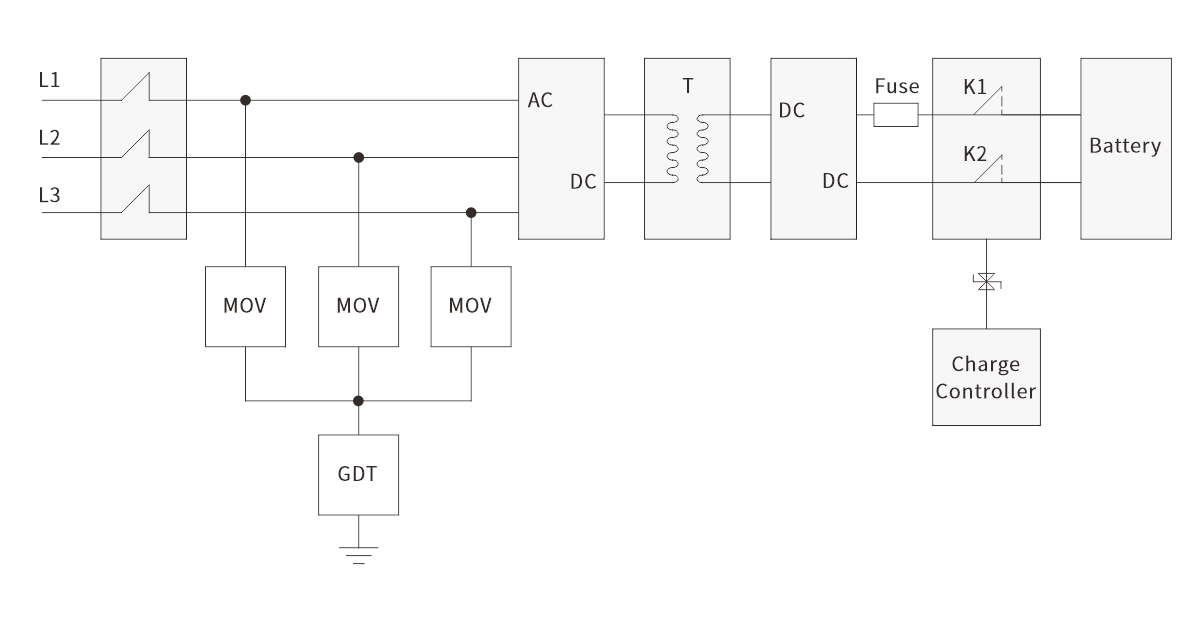

Application Circuit Diagram

Find products and reference designs suitable for your system

On-Board Charger
