HDMI

Build Semiware into your application circuit

Summary Circuit Diagram Documents Others

Summary

The HDMI interface is easily interfered or even damaged by electrostatic discharge (ESD) during use, especially in a dry environment, when frequently plugging and unplugging devices, or when users are electrostatically charged. In order to ensure the signal integrity and chip safety of the HDMI port, a special electrostatic protection design is required.

Test Level：Contact-8kV Air-15kV

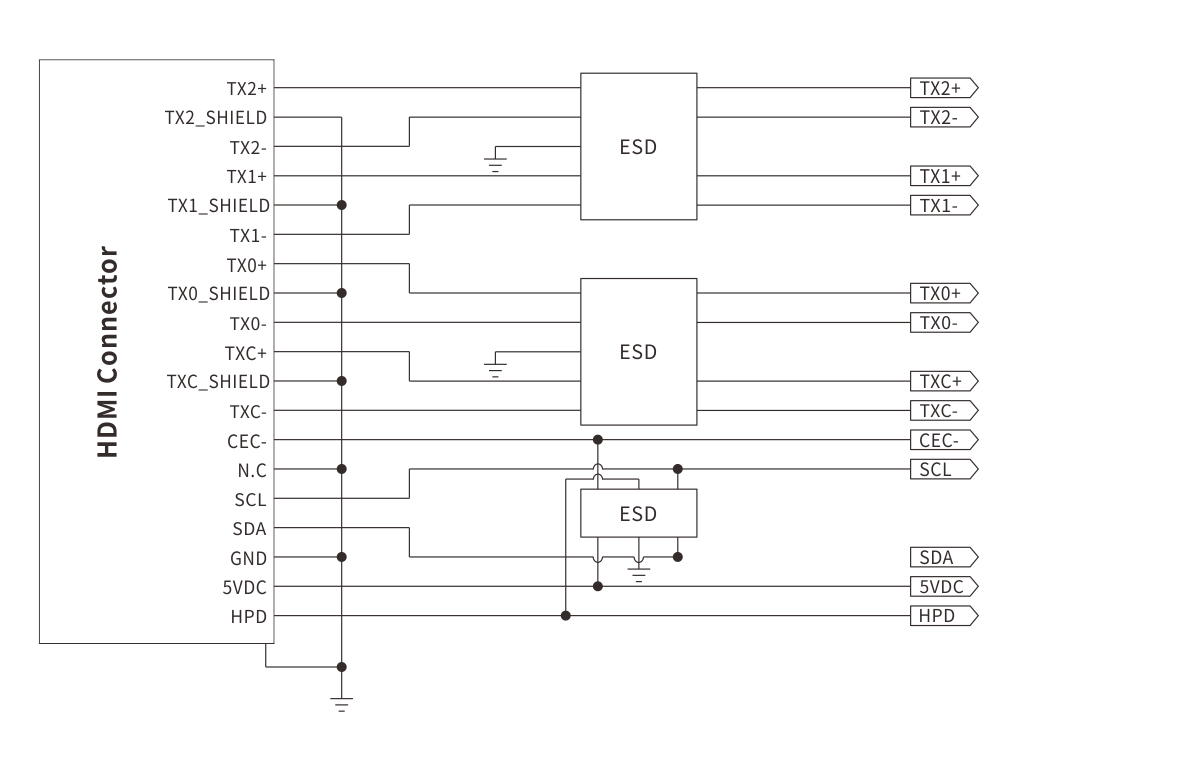

Application Circuit Diagram

Find products and reference designs suitable for your system

HDMI
ESD1ESD2ESD3
Product Reference Design

SEULC3324P10 | TVS Diode Array3.3V, 0.6pF, ±25KV, DFN2510-10L
Product Reference Design

SEULC3324P10 | TVS Diode Array3.3V, 0.6pF, ±25KV, DFN2510-10L
Product Reference Design

SESRV05-4A | TVS Diode Array5V, 0.8pF, ±15KV, SOT23-6L

Other Related

RS485-Surge RS485-ESD I/O RS232-ESD/Surge CAN-Surge HD Analog Video RS232-ESD USB3.0 USB2.0 USB2.0-Dual Type-C VGA DVI
