Set-top Box

Build Semiware into your application circuit

Summary Circuit Diagram Documents Others

Summary

A set-top box is a device that connects a television to an external signal source. Because various data type interfaces such as USB, HDMI, and network are susceptible to various fault conditions such as overvoltage, overcurrent, and ESD during hot-swapping, corresponding protection should be added to the input end of the interface during the product design process to ensure product reliability.

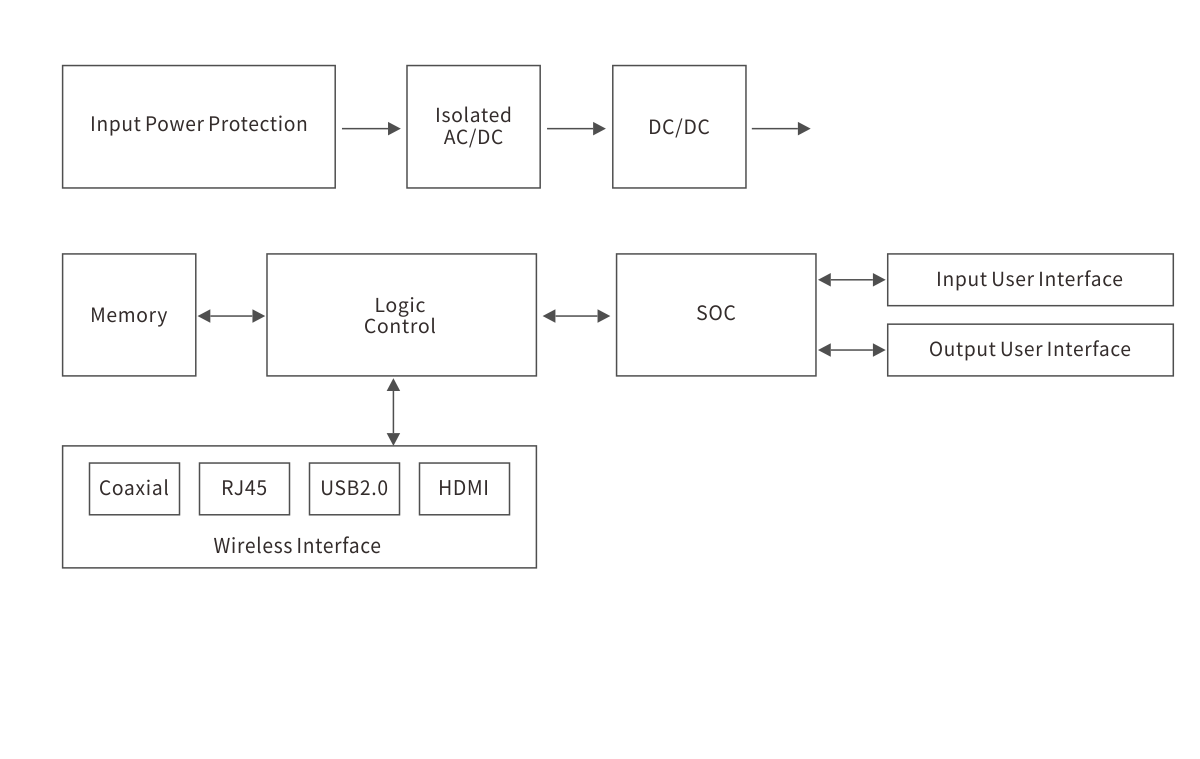

Application Circuit Diagram

Find products and reference designs suitable for your system

Set-top Box
RJ45CoaxialUSBHDMI
Product Reference Design

SG3225B800-Gas Discharge Tube800V, 0.5pF, 1KA, 3.2x2.5x2.5mm

SE3D35B3.3MA-Low Capacitance ESD Diode3.3V, 0.6pF, ±30KV, SOD-323

SESRV05-4A-TVS Diode Array5V, 0.8pF, ±15KV, SOT-23-6L

STB100B58-High Reliability Thyristor58V, 6KV, 100A, SMB

STB100B400-High Reliability Thyristor400V, 6KV, 100A, SMB
Product Reference Design

SG4532B090-Gas Discharge Tube90V, 2KA, 4.5x3.2x2.7mm

SE3D35B3.3MA-Low Capacitance ESD Diode3.3V, 0.6pF, ±30KV, SOD-323

SE3D35B5.0MA-Low Capacitance ESD Diode5.0V, 1.5pF, ±30KV, SOD-323
Product Reference Design

SE41T06U5.0LB-TVS Diode Array5V, ±20kV, 2pF, SOT-143
Product Reference Design

SEULC0524PA-TVS Diode Array5V, 0.6pF, ±15KV, DFN2510-10L

SESRV05-4A-TVS Diode Array5V, 0.6pF, ±15KV, SOT23-6L

Other Related

Outdoor AP Antenna System PBX RRU xDSL Power Supply Cellular Base Station Small Cell BBU
