UPS

Build Semiware into your application circuit

Summary Circuit Diagram Documents Others

Summary

In addition to providing backup power, UPS (Uninterruptible Power Supply) also provides inherent power quality improvement and protection. Refer to this block diagram to learn about Semiware's products and portfolio that help ensure UPS operation when needed. We manufacture MOSFETs, thyristors, and a wide range of overcurrent, overvoltage, ESD, and reverse polarity protection products.

Application Circuit Diagram

Find products and reference designs suitable for your system

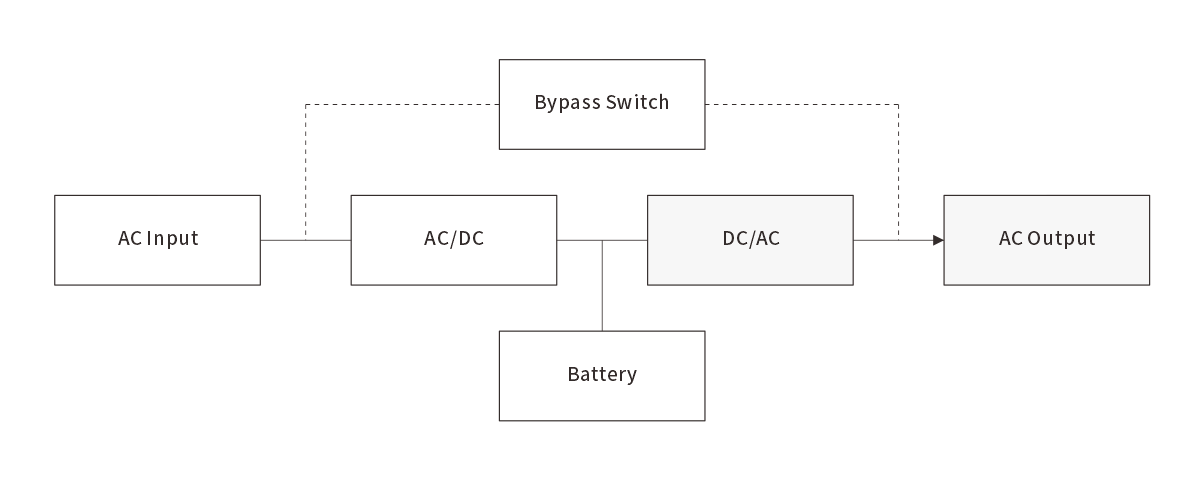

UPS
AC InputAC/DCBypass SwitchBattery
Product Reference Design

VaristorFast response speed, strong surge absorption capability, nonlinear volt-ampere characteristics

Gas Discharge TubeLarge current capacity, low inter-electrode capacitance, small leakage current
Product Reference Design

MOSFETFast switching speed, low power consumption, low on-resistance
Product Reference Design

SCR & TriacFast switching speed, with functions of rectification, switching and power regulation
Product Reference Design

ESD DiodeLow inter-electrode capacitance, fast response, and a variety of shape options

TVS DiodeFast response speed, precise clamping voltage, good high temperature resistance
