Automotive ESD Suppressors

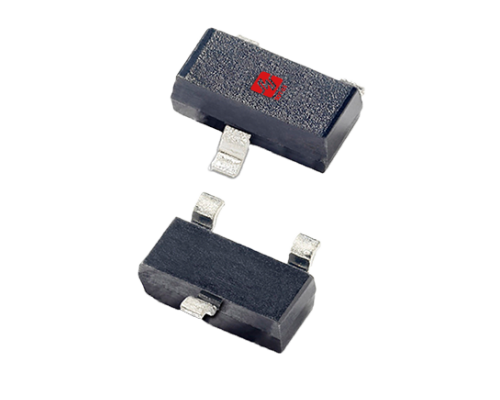

PESD1CANActive

The PESD1CAN is a high-performance TVS diode designed to protect CAN and CAN-FD transceivers from electrostatic discharge (ESD) and voltage surges.Ideal for automotive and industrial applications.

Datasheet Inquire Now

Electrical Parameters

Part Number PESD1CAN

Package SOT-23

AEC Qualified Yes

Vrwm [Max] (V) 24

Vbr [Min] (V)26

Vc @Ipp [Max] (V)50

Ipp [Max] (A) 3

Vesd [Contact] (KV) 20

Vesd [Air] (KV) 30

IR [max] (uA) 1

CJ [Typ] (pF) 13

TJ (°C) -55 to +150

Status Active

Product Features

High ESD Protection up to ±30 kV (IEC 61000-4-2) Low Capacitance (Typically 13 pF) Wide Working Voltage Range (Up To 24 V) Automotive-Grade Reliability (AEC-Q101 Qualified) Compact SOT-23 Package for Space-Saving Designs PESD1CAN Optimized for CAN Bus Systems
