I. Why Was the 13SMDJ87CA Developed?
In critical application scenarios—such as energy storage systems, Lithium-ion Battery Management Systems (BMS), and new energy vehicle electronics—equipment operates continuously (24/7) under conditions of high voltage and high frequency.
Transient overvoltage events—including lightning surges, load dumps, and inductive load switching—can easily cause breakdown failures in core components (such as the main control MCU within a BMS), leading to system downtime.
To address this critical industry pain point, Semiware has independently developed and mass-produced the 13SMDJ87CA.
II. 13SMDJ87CA Working Principle
The 13SMDJ87CA is a 13,000W Snap-back Transient Overvoltage Protection device introduced by Semiware specifically for high-reliability power supply systems.
This device features a unique "Snap-back" (negative resistance) structural characteristic. Once triggered by a surge, it rapidly pulls the clamping voltage down to a lower holding voltage range. This significantly reduces the voltage stress placed on downstream sensitive components (such as MCUs, AFEs, MOSFETs, etc.), thereby achieving a deeper level of circuit protection.

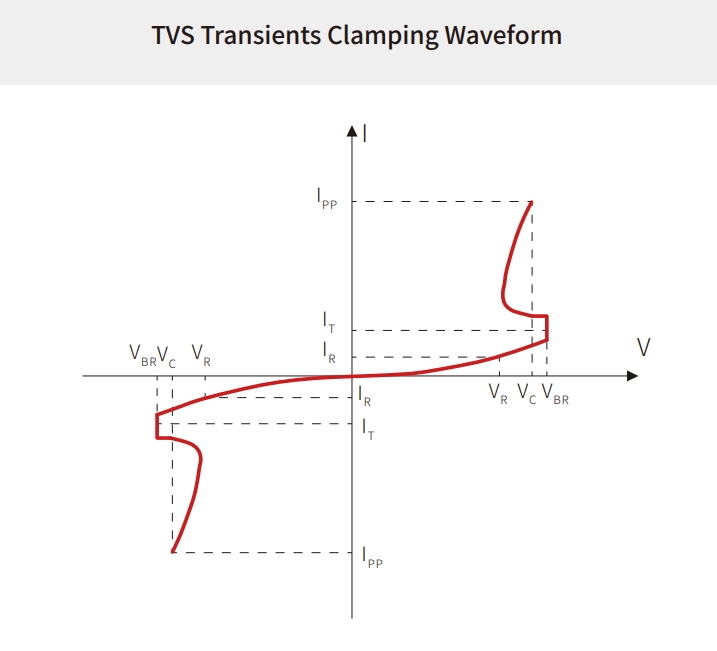

III. V-I Characteristic Curve of the 13SMDJ87CA Snap-back TVS Diode
IV. Key Features of Snap-back TVS Diodes
- Ultra-Fast Response Capability
With turn-on speeds in the nanosecond range, it can rapidly suppress high-energy transient shocks, such as lightning surges and load dumps.
- Ultra-Low Clamping Voltage
The snap-back mechanism significantly lowers the clamping voltage (Vc) value, providing a larger safety margin for MCUs, AFEs, and power devices.
- No Latch-up Risk
It recovers rapidly after a surge event, making it ideal for systems requiring continuous 24/7 operation.
- High-Reliability Design
Capable of withstanding repeated surge impacts without failure, it meets the long-term operational requirements for both automotive-grade and energy-storage-grade applications.
V. Snap-back TVS vs. Traditional TVS
| Item | General TVS | Snap-back TVS |
| Clamping Mechanism | Clamping voltage increases as surge current rises | Enters negative-resistance snap-back region and quickly drops to a low holding voltage |
| Downstream Protection Capability | May still expose sensitive ICs to high residual voltage under large surges | Significantly reduces Vc, providing stronger protection for MCUs, AFE ICs, and MOSFETs |
| Energy Handling Method | Dissipates surge energy through gradual avalanche clamping | Rapid snap-back behavior enables efficient energy discharge at a lower voltage level |
| Application | General-purpose electronics and industrial systems | High-reliability systems such as energy storage, EV electronics, and BMS applications |
VI. The Core Value of Low-Clamping Snap-back TVS
1️⃣ Enhancing System Reliability and Lifespan
Effectively mitigates the impact of transient overvoltage on MCUs, MOSFETs, and analog front-end circuits, thereby significantly reducing system failure rates and extending equipment lifespan.
2️⃣ Reducing Design Redundancy and BOM Costs
Due to its lower clamping voltage, lower-voltage-rated downstream components can be selected, thereby optimizing overall Bill of Materials (BOM) costs and saving design space.
3️⃣ Meeting Stricter Functional Safety Requirements
Suitable for meeting the functional safety and surge immunity requirements of automotive electronics and energy storage systems (e.g., relevant ISO design standards), thereby increasing the product certification pass rate.
VII. Typical Application Scenarios
🔹 Energy Storage Systems: Power Conversion Systems (PCS), battery packs, BMS main control boards, and high-voltage sampling loops.
🔹 New Energy Vehicles: On-board BMS, OBC (On-Board Chargers), DC-DC converters, and 48V/800V high-voltage systems.
🔹 Industrial Control: PV inverters, industrial power supplies, high-voltage sensors, and communication power supplies.
🔹 High-End Electronics: Medical equipment, industrial robots, security surveillance systems, and smart grid equipment.
VIII. Why Choose Semiware?
Semiware is a National High-Tech Enterprise specializing in ESD/EMC/overvoltage protection devices, with core technologies benchmarked against industry leaders such as Littelfuse, Vishay, and Semtech.
☑️ Proprietary Technology: Core processes for Snap-back TVS are independently developed in-house.
☑️ Quality Assurance: Certified under AEC-Q101 (Automotive Grade), as well as ISO 9001 and ISO 14001 management systems.
☑️ Service Excellence: Our FAE team provides end-to-end support, offering one-stop services covering component selection, solution design, and test verification.
☑️ Lead Times & Cost-Effectiveness: Domestic stock availability ensures stable lead times and superior cost-performance ratios, offering distinct advantages as an alternative solution.
☑️ Laboratory Support: We operate our own in-house EMC laboratory, providing complimentary surge, ESD, and load dump testing services for our customers.
Conclusion
The 13SMDJ87CA Snap-back TVS diode represents a new generation of surge protection philosophy tailored for high-reliability power electronics systems. It provides safer and more efficient overvoltage protection solutions for energy storage, BMS, and new energy vehicle systems.
Looking for a higher-reliability surge protection solution for your energy storage or automotive system?
👉 Contact us for datasheets, samples, and application support.
