Overview
As electronic devices evolve toward miniaturization, high speed, and intelligence, components such as USB Type-C ports, Ethernet interfaces, sensors, wireless communication modules, and various smart control units are being widely adopted in sectors including consumer electronics, industrial equipment, new energy vehicles, and smart home systems.
However, increasingly complex electronic systems bring new reliability challenges. To enhance the stability of electronic products operating in complex environments, robust circuit protection strategies must be implemented during the design phase.
I. Why Do Electronic Devices Need ESD and Surge Protection?
1.1 ESD (Electrostatic Discharge)
Sources:
- Human contact with device interfaces
- Plugging and unplugging connectors (e.g., USB, Type-C)
- Static charge accumulation during manufacturing
- Electrostatic discharge from device casings or button areas
Although ESD events typically last only nanoseconds, the resulting instantaneous high voltage can cause dielectric breakdown within the internal structures of sensitive ICs.
Impacts:
- MCU damage
- Display anomalies
- Data transmission errors
- System freezes or automatic reboots
1.2 Surge Events
Sources:
- Lightning-induced surges
- Power grid fluctuations
- Power switching operations
- Interference from industrial equipment
Surges carry higher energy levels and can lead to:
- Burnout of power ICs
- MOSFET breakdown
- PCB damage
- Reduced product lifespan
Common testing standards include:
- IEC 61000-4-2 (ESD immunity testing)
- IEC 61000-4-5 (Surge immunity testing)
- ISO 10605 (Automotive ESD testing)
Semiware offers a comprehensive portfolio of protection devices—including ESD protection">ESD protection diodes, TVS (Transient Voltage Suppressor) diodes, Gas Discharge Tubes (GDTs), PPTC resettable fuses, and PLED LED protection devices—to help customers mitigate risks associated with ESD, surges, and overcurrent across various application scenarios.
II. Analysis of Semiware ESD and Surge Protection Solutions
1. ESD Protection Solutions for High-Speed Interfaces
With the evolution of high-speed communication interfaces, protection solutions must not only withstand electrostatic discharges but also maintain signal integrity. Therefore, high-speed interface protection devices typically need to meet the following requirements:
- Ultra-low junction capacitance
- Low leakage current
- Fast response
- Low clamping voltage

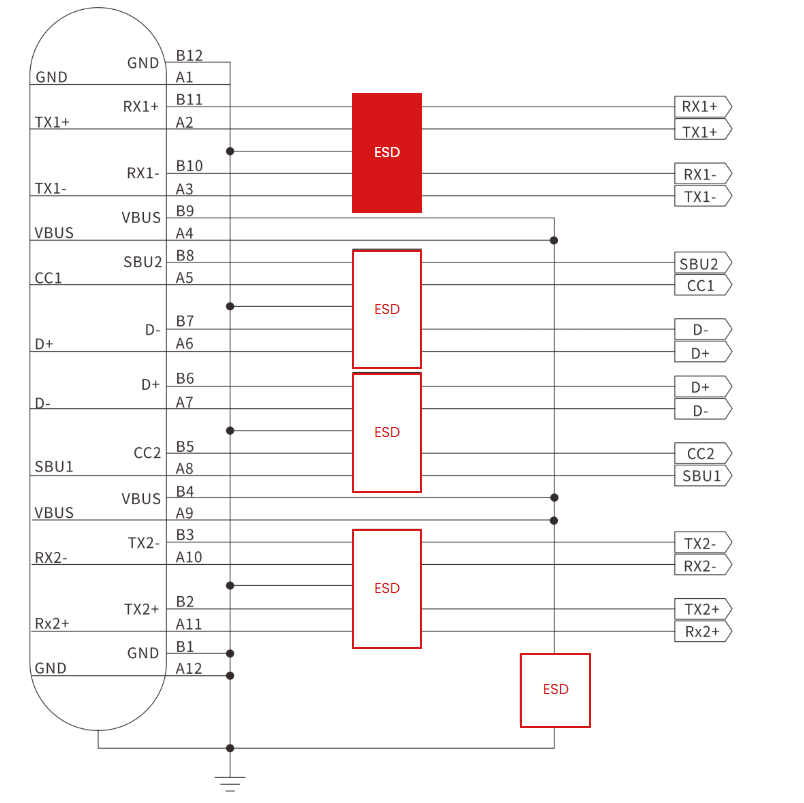

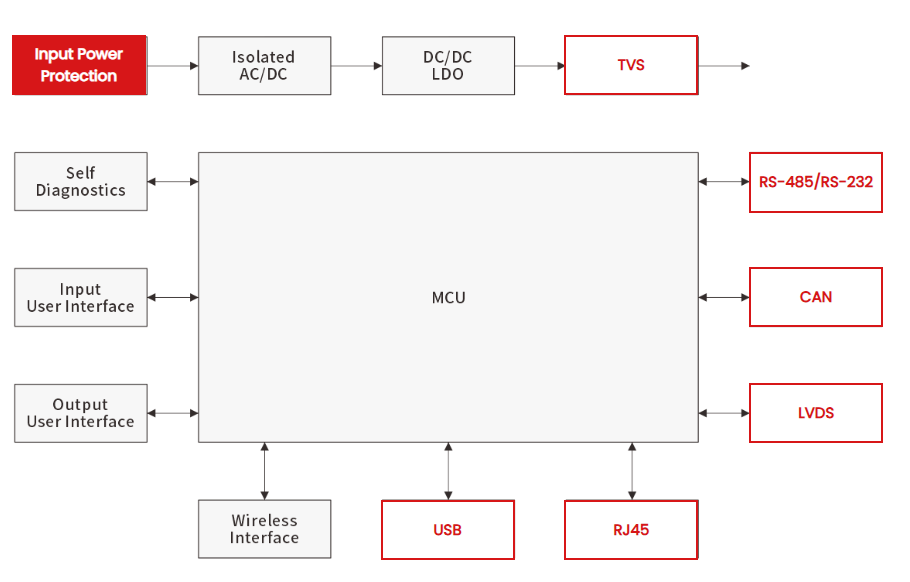

1.1 USB Type-C Interface Protection Solutions
Type-C interfaces are constantly exposed to the external environment, making them susceptible to ESD (electrostatic discharge) from human contact, transients during plugging/unplugging, and VBUS surges.
Recommended protection solutions: Low-capacitance ESD protection">ESD protection devices
➡️ Type-C Solution: https://en.semiware.com/reference-designs/type-c

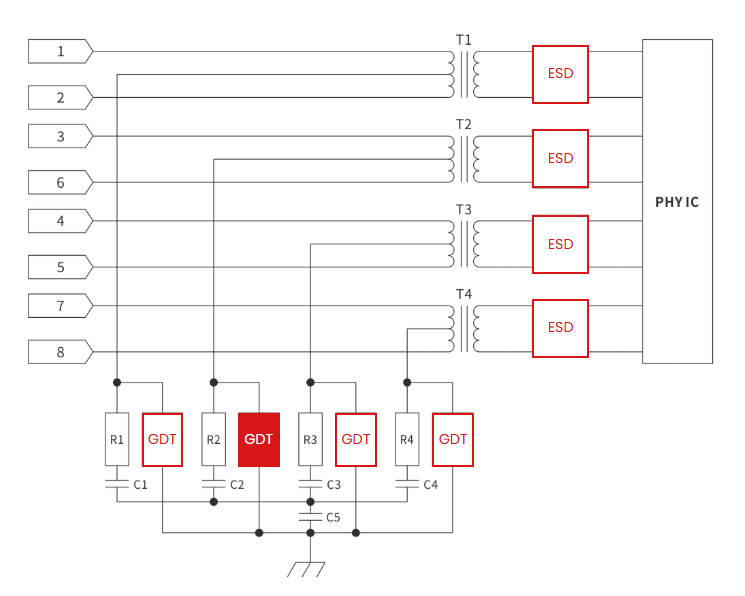

1.2 Ethernet and Communication Interface Protection Solutions
Ethernet, PoE, and industrial communication interfaces typically connect to external cables, making them more vulnerable to lightning-induced surges, EFT (Electrical Fast Transient) bursts, and ESD interference.
Recommended protection solutions: Low-capacitance TVS Diode Array + GDT
➡️ RJ45 Interface Solution: https://en.semiware.com/reference-designs/rj45-10g/
➡️ POE Interface Solution: https://en.semiware.com/reference-designs/poe-10g-6kv/
2. ESD Protection Solutions for Consumer Electronics

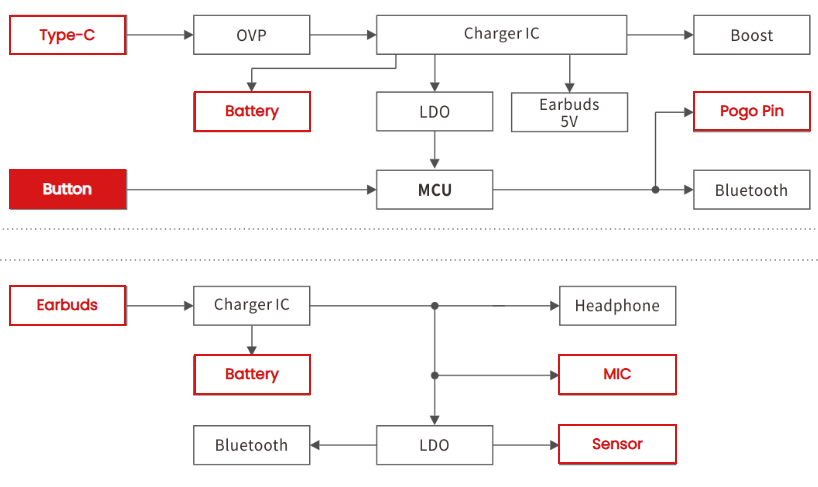

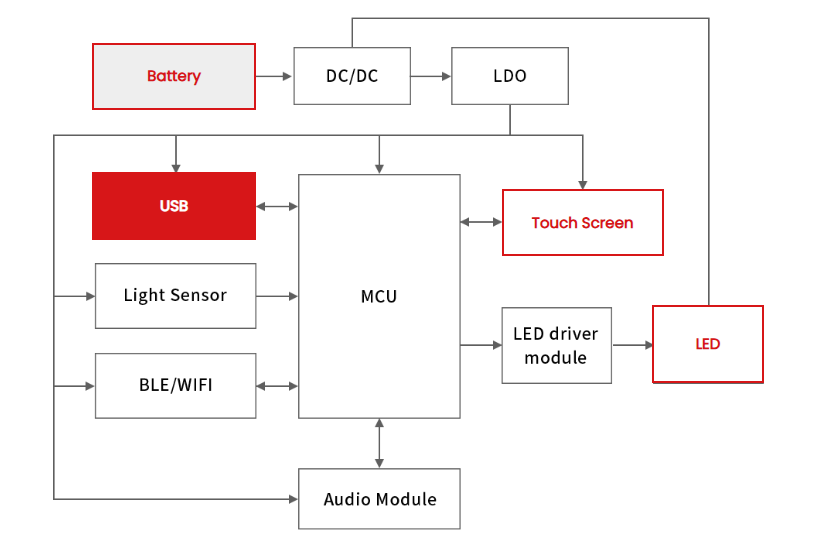

2.1 TWS Wireless Earbud Protection Solutions
Due to the compact internal space of TWS earbuds, protection devices must simultaneously offer small package sizes, low leakage current, and low capacitance.
➡️ TWS Interface Solution: https://en.semiware.com/applications/tws/\
2.2 Bluetooth Speaker Protection Solutions
The USB, TF card, audio, and DC power interfaces of Bluetooth speakers are susceptible to ESD caused by plugging and unplugging.
Product reliability can be effectively improved by incorporating ESD protection">ESD protection devices at the interfaces and combining them with power surge protection designs.
3. Industrial Equipment ESD and Surge Protection
3.1 Industrial Sensor (4-20mA) Protection
Industrial sensors are commonly used in smart instrumentation and factory automation; since sensor lines may involve long cable runs, they are susceptible to external interference.
Key design focus: High surge withstand capability + low leakage current
Recommended solution: GDT + ESD Diode
➡️ Industrial Sensor Solution: https://en.semiware.com/applications/sensor/
3.2 PLC (Power Line Communication) Protection
PLC communication systems connect to both AC power lines and data communication lines, requiring a balance between surge protection and signal integrity.
Recommended solution:
- Power side: Use MOV/GDT for high-energy surge dissipation
- Communication interface: Use low-capacitance TVS for precision protection
➡️ PLC Solution: https://en.semiware.com/applications/plc/
4. Power System Protection

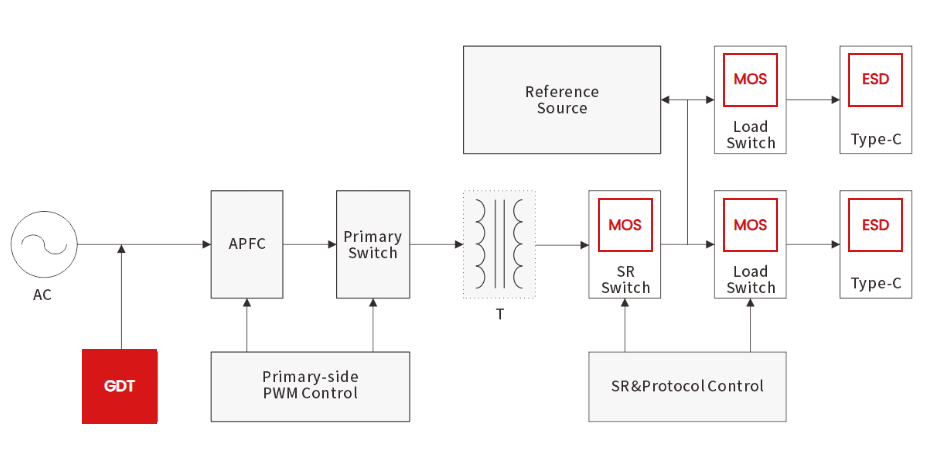

4.1 GaN Fast-Charging Power Supply Protection
Characteristics of GaN power devices: High switching frequency and high efficiency
High-speed switching processes can generate voltage spikes, high-frequency ringing, and overvoltage stress.
TVS protection devices can rapidly absorb transient energy, reducing the risk of overvoltage stress on GaN MOSFETs.
➡️ PD Fast Charging Solution: https://en.semiware.com/applications/pd-fast-charging/
4.2 Protection Scheme for Smart LED Lighting
LED lighting systems operate in complex environments over long periods and may be susceptible to power grid surges, lightning-induced transients, and LED open-circuit faults.
Recommended Solution: MOSFET + PLED Open-Circuit Protector + ESD Diode
➡️ Smart Lamps Solution: https://en.semiware.com/applications/smart-lamps/
5. Automotive Electronics ESD and Surge Protection Solutions
With the development of new energy vehicles and intelligent driving technologies, automotive electronic systems are integrating an increasing number of sensitive electronic modules, such as:
- ADAS systems
- T-BOX
- BMS
- CAN/LIN communication
Automotive applications must withstand:
- ESD (Electrostatic Discharge)
- Load Dump
- Power supply transients
- Communication interference
Semiware offers protection devices designed to meet automotive requirements, suitable for:
- 12V/24V power supply protection
- CAN/LIN interface protection
- Sensor interface protection
➡️ Automotive Electronics Solution: https://en.semiware.com/application/automotive
Summary
Semiware specializes in the R&D and manufacturing of circuit protection devices, providing customers with:
- TVS (Transient Voltage Suppressor) diodes
- ESD protection">ESD protection diodes
- GDTs (Gas Discharge Tubes)
- PPTC resettable fuses
- PLED LED protection devices
- MOSFETs and related semiconductor devices
From consumer electronics to industrial control, and from new energy vehicles to smart devices, Semiware helps customers implement highly reliable and efficient ESD and surge protection solutions.
If you are designing ESD, surge, or EMC protection for electronic products, Semiware’s technical team is available to provide support with component selection and application solution recommendations.
