In the 5G era of the Internet of Things, Bluetooth acts as an "invisible bridge" between our devices. From wireless earbuds to smartwatches on our wrists, and car modules that connect to our phones, the Bluetooth chips in these devices are becoming increasingly sophisticated and sensitive to static electricity.
Today, we'll discuss the GBLC03CI, an electrostatic discharge (ESD) protection diode specifically designed to protect these delicate Bluetooth chips. Despite its tiny size, it's incredibly powerful, truly a "miniature guardian" for Bluetooth devices.
⚡ Why Do Bluetooth Devices Need Special ESD Protection?
You might think static electricity is just a minor nuisance, but for Bluetooth devices, it's a significant threat:
- Complex Scenarios: We easily generate static electricity by touching headphones and plugging/unplugging charging cables every day.
- Numerous Entry Points: USB ports, headphone jacks, and even antennas are all potential entry points for static electricity.
- Severe Interference: Static pulses and Bluetooth's 2.4GHz signal overlap in frequency bands, potentially causing interference.
Without proper protection, issues can range from Bluetooth disconnection and audio stuttering to serious damage such as chip burnout and permanent device failure.
Therefore, the devices must meet three criteria: minimal signal impact (extremely low capacitance), sufficiently small size, and lightning-fast response. This is precisely the design principle behind the GBLC03CI.
✔️ GBLC03CI: A Protection Expert "Tailor-Made" for Bluetooth

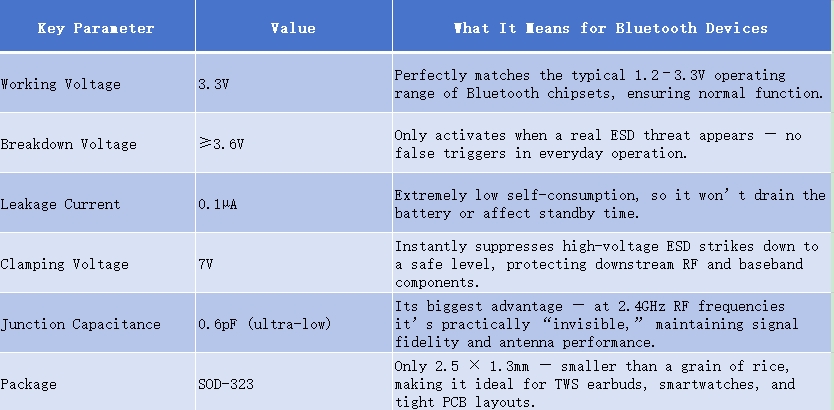

Simply put, almost all of the GBLC03CI's specifications are "tailor-made" to meet the specific needs of Bluetooth devices👇
✔️ GBLC03CI Practical Application Scenarios Analysis
✔ TWS Earphones
Placed near antennas, charging ports, and touch areas, maintaining connection stability and anti-interference capabilities.
✔ Smartwatches and Smartbands
Protect RF units and MCU GPIOs, reducing restarts or protocol stack anomalies caused by static electricity.
✔ Bluetooth Speakers and Automotive Modules
Protect USB/Type-C ports and signal cables, improving plug-in/plug-out tolerance and product lifespan.
✔ BLE Modules & IoT Sensors
Achieve 2.4GHz RF signal integrity, improving wireless communication reliability.
💡 Design Tips
1️⃣ Place the GBLC03CI as close as possible to the ESD entry point.
The shorter the trace between the connector/antenna and the diode, the faster the ESD will be shunted away.
2️⃣ Keep the protected line short and direct.
Avoid long meandering traces that may introduce parasitic inductance and degrade RF performance.
3️⃣ Use a solid, low-impedance ground plane.
A strong grounding path allows the ESD current to quickly dissipate into the ground layer.
4️⃣Avoid placing TVS diodes in the RF matching network.
The GBLC03CI should be located before the matching components to avoid altering impedance.
🔎 FAQs
Q1: Does the GBLC03CI affect Bluetooth RF performance?
No. With only 0.6pF of capacitance, it remains virtually “invisible” at 2.4GHz, preserving antenna efficiency and signal integrity.
Q2: What ESD protection level does it support?
GBLC03CI complies with IEC 61000-4-2 and can withstand ±30kV air and contact discharge.
Q3: Is it suitable for BLE, LE Audio, or AoA/AoD applications?
Yes — it’s ideal for low-power, high-frequency Bluetooth connections, including LE Audio and positioning applications.
Q4: Can it replace other existing TVS diodes?
Yes. We can help with cross-reference recommendations and PCB placement guidance to ensure safe drop-in replacement.
Q5: Are samples and mass-production supply available?
Yes. We provide quick sample support and stable mass-production supply for ongoing and upcoming Bluetooth device projects.
🔗 Related Products
SR05-4 — Multi-channel Alternative
✔ If your design needs protection for multiple lines (USB, keypad, GPIO), SR05-4 offers 4-channel ESD protection in one package — reducing BOM and assembly cost.
SM712 — For RS-485 & Industrial Communication
✔ For equipment including RS-485 interfaces or longer cable exposure, SM712 provides strong bidirectional surge and ESD protection — often chosen for automotive & industrial Bluetooth gateways.
GBLC05CI — Higher-Voltage Option
✔ If your operating voltage is above 3V or requires higher surge resilience, GBLC05CI can be selected as a direct model-family upgrade.
SD03C — Cost-optimized alternative
✔ For applications where RF sensitivity is lower, GBLC03C offers similar protection at a more economical price point.
GBLC12CI — Type-C & high-energy discharge scenarios
✔ If the Bluetooth product includes Type-C charging or frequent static contact exposure, GBLC12CI provides stronger clamping performance with similar footprint.
Bluetooth devices continue to evolve towards lower power consumption and higher connection stability, making tiny ESD protection components a key part of system reliability. The GBLC03CI, with its 0.6pF capacitance and compact package, provides truly reliable ESD protection for high-frequency wireless applications.
For technical data or sample support, please contact us directly. We can provide the most suitable ESD protection recommendations based on your product structure and antenna layout.👇
