Introduction
Energy storage systems contain components such as DC/DC converters, power modules, relays, contactors, and power switching devices; these devices can generate transient overvoltages during startup, shutdown, and load switching. Additionally, communication lines connecting different modules are susceptible to disturbances such as ESD (Electrostatic Discharge), EFT (Electrical Fast Transient), and Surge.
Therefore, incorporating appropriate surge protection devices into BMS communication interfaces is a critical consideration in the EMC design of energy storage equipment.
The P0080TA is a Thyristor Surge Suppressor (TSS) designed to provide transient overvoltage protection for circuits such as low-voltage data lines and serial interfaces.
I. Why Do Energy Storage BMS Communication Interfaces Need Surge Protection?
Risks to BMS communication lines stem primarily from two sources: transient interference generated within the system and interference introduced via external lines.
- Switching Transients Within the Energy Storage System
Energy storage systems utilize numerous power electronics and switching devices. Components such as power switches in the PCS (Power Conversion System), DC/DC converters, relays, and contactors generate rapid changes in voltage and current when switching operational states.
These transient disturbances can couple into the BMS control board via power lines, ground lines, parasitic capacitance, or radiated coupling.
- Interference Introduced by External Communication Lines
The BMS typically requires communication with other control units.
In practical energy storage systems, communication lines may span different modules or even connect to distant control equipment. Longer lines and a greater number of connected devices generally increase the likelihood of exposure to external electromagnetic interference.
- Impact of ESD, EFT, and Surge
Risks of electrostatic discharge (ESD) exist throughout the production, installation, commissioning, and maintenance phases of energy storage equipment.
Furthermore, operations such as relay actuation, motor startup/shutdown, and the switching of other equipment in industrial environments can generate fast transient disturbances like EFT.
II. Role of the P0080TA Thyristor in BMS Communication Interfaces
The P0080TA utilizes an SMA (DO-214AC) surface-mount package and is designed for transient overvoltage protection on low-voltage data lines and serial interfaces. Several of its key parameters align well with the protection requirements of BMS communication interfaces:
- Low junction capacitance: With a maximum junction capacitance of 50 pF, it minimizes the impact of the protection device on signal integrity while meeting actual communication speed and circuit design requirements.
- Low leakage current: The maximum leakage current is only 5 μA, ensuring minimal impact on communication lines during normal operation and helping to reduce the static power consumption of the protection circuit itself.
- High surge withstand capability: It supports a peak pulse current (IPP) of up to 45 A (10/1000 μs) and a peak pulse voltage (VPP) of up to 3000 V (10/700 μs), making it suitable for interface protection designs subject to relevant surge testing standards.
- Fast turn-on and automatic recovery: When a transient overvoltage occurs on the line, the P0080TA enters a conducting state, shunting a portion of the surge current and reducing the voltage stress on the downstream communication IC; it returns to a high-impedance state once the transient event concludes.
Therefore, in practical BMS communication interface applications, the P0080TA can be placed between the external communication lines and the communication transceiver to serve as a transient protection device at the interface.

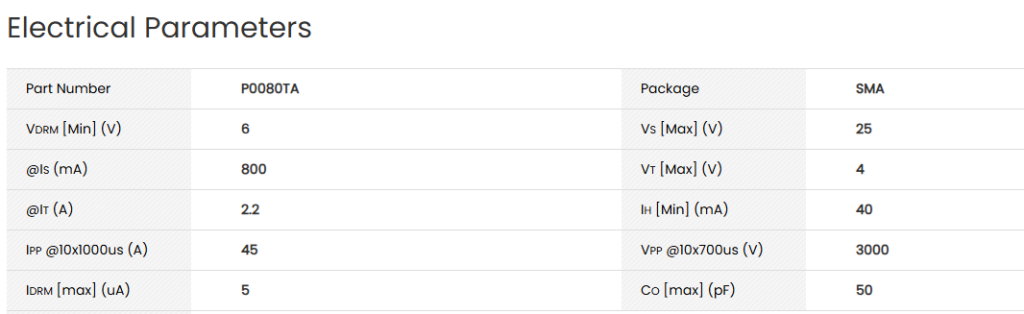

III. Key Parameters of the P0080TA
IV. Core Advantages of the Semiware P0080TA
4.1 Parameters and Package Comparable to Littelfuse Equivalents
The P0080TA employs the industry-standard SMA (DO-214AC) package, with electrical parameters and application positioning comparable to similar TSS products from Littelfuse.
The product complies with relevant environmental regulations such as RoHS and REACH. Customers with existing, mature BMS communication interface protection solutions can evaluate the P0080TA as a replacement without altering their overall protection strategy.
4.2 In-house Manufacturing and R&D for Better Control Over Costs and Lead Times
In-house manufacturing capabilities reduce supply chain uncertainties regarding lead times and costs. This enables the provision of more competitive cost solutions and more stable delivery support to customers, while ensuring product quality and batch consistency.
4.3 Traceable Quality and Application Technical Support
Semiware implements quality control throughout the product manufacturing and testing processes and retains the associated data, ensuring quality traceability for batch products.
Should customers encounter issues during actual application—such as EMC testing, surge protection, or component selection—Semiware’s technical team can analyze the specific circuitry, test conditions, and PCB layout to assist in optimizing protection solutions.
V. Application Scenarios for P0080TA Thyristor
In addition to surge protection for communication interfaces in energy storage systems, the P0080TA is suitable for use with low-voltage data lines, serial communication interfaces, and other signal lines sensitive to transient overvoltage.
Conclusion
Although energy storage BMS communication interfaces operate as low-voltage signal circuits, they are still exposed to transient disturbances—such as ESD, EFT, and surges—in real-world operating environments. Selecting appropriate surge protection devices mitigates the risk of transient overvoltage damage to communication transceivers while maintaining signal integrity and system reliability.
If you are developing energy storage BMS, PCS, or other industrial communication equipment and require an evaluation of surge protection devices, please contact Semiware for specifications, samples, and component selection support.
