🔹 Overview
With the rapid proliferation of Internet of Things (IoT) devices, device safety and reliability have become core concerns for engineers. Transient voltage suppressor (TVS) diodes, especially the SMCJ33CA, play a crucial role in protecting circuits from transient overvoltage and surge damage.
🔹 What Is SMCJ33CA?
The SMCJ33CA is a bidirectional transient voltage suppressor diode designed to quickly respond to overvoltage events, clamping the voltage within a safe range and protecting the power supply, communication interfaces, and sensor interfaces of IoT devices.
🔹 SMCJ33CA Key Electrical Characteristics
| Parameter | Value | Description |
| Polarity | Bidirectional | No polarity requirement, simplifies circuit design |
| Reverse Working Voltage (Vrwm) | 33V | Remains non-conductive under normal operating voltage |
| Breakdown Voltage (Vbr) | 36.7V – 40.6V | Starts conducting during overvoltage events |
| Reverse Leakage Current (Ir) | 1μA | Ultra-low leakage current, ideal for low-power IoT devices |
| Peak Pulse Current (Ipp) @10/1000μs | 28.2A | Excellent capability to handle high transient currents |
| Maximum Clamping Voltage | 53.3V | Limits voltage to a safe level |
| Peak Pulse Power (Ppp) @10/1000μs | 1500W | High transient energy absorption capability |
🔹 Why Do IoT Devices Need Transient Voltage Protection?
IoT devices are typically exposed to various voltage fluctuations and environmental interference. Transient overvoltages can cause the following problems:
- Device chip damage
- Communication failure
- Data loss
- Shortened overall device lifespan
The SMCJ33CA can respond to transient overvoltages in nanoseconds, clamping the voltage to a safe range, thereby protecting the device for normal operation.
🔹 Typical Applications of SMCJ33CA in IoT Devices
1️⃣ Power Input Protection
Protects IoT devices from voltage spikes caused by unstable power sources or external adapters.
2️⃣ Communication Interface Protection
Ensures stable and reliable data transmission by suppressing transient overvoltage on communication lines.
3️⃣ Sensor Interface Protection
Safeguards sensitive sensor circuits from voltage surges, ensuring accurate and consistent data acquisition.
🔹 Key Advantages of SMCJ33CA
- Ultra-fast response time for effective transient suppression
- Low leakage current suitable for battery-powered IoT devices
- High peak pulse power (1500W) for robust surge protection
- Bidirectional design simplifies PCB layout and reduces design complexity
🔹 Design Considerations When Selecting SMCJ33CA
When choosing a TVS diode for IoT applications, engineers should consider more than just voltage ratings. Key factors include:
- Operating temperature range
- Package type and PCB layout
- Compliance with industry reliability standards
- Compatibility with system voltage levels
Proper selection ensures long-term reliability under real-world operating conditions.
❓ Frequently Asked Questions About SMCJ33CA
Q: How fast is the response time of SMCJ33CA?
A: The SMCJ33CA responds to transient overvoltage events within nanoseconds, providing immediate protection to sensitive circuits.
Q: Is SMCJ33CA suitable for compact IoT devices?
A: Yes. Its compact package and low power consumption make it ideal for space-constrained and energy-efficient IoT designs.
Q: What types of devices typically use SMCJ33CA?
A: IoT gateways, smart home devices, industrial sensors, monitoring systems, and communication modules commonly use this TVS diode.
🌍 Conclusion
Protecting the Future of IoT with Semiware's SMCJ33CA!
As IoT technology continues to evolve, the demand for reliable and cost-effective circuit protection solutions will only increase. The SMCJ33CA transient voltage suppressor diode plays a vital role in safeguarding IoT devices against transient overvoltage events.
Semiware’s SMCJ33CA TVS diode is designed to deliver consistent electrical performance, high surge capability, and long-term reliability, making it a dependable choice for a wide range of IoT applications. It is fully compatible with industry-standard SMCJ33CA specifications and can serve as a reliable alternative to mainstream brands, helping manufacturers maintain design continuity while optimizing supply chain flexibility.

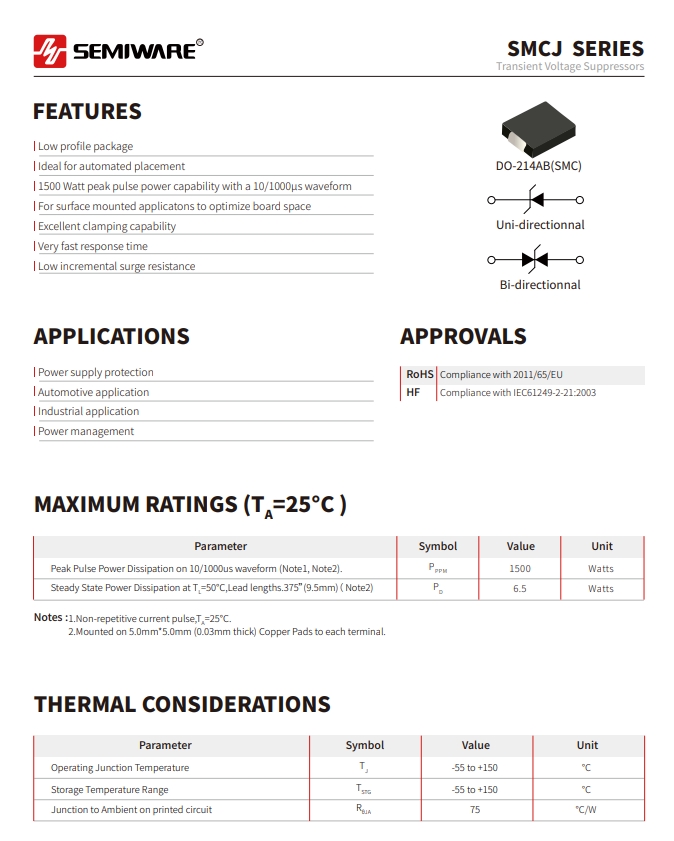

SMCJ33CA Datasheet 👉 https://en.semiware.com/tvs-diodes/smcj33ca/
Explore our full range of transient voltage protection components 👉 https://en.semiware.com/product-line/tvs-diodes/
