Overview

The SMD1206-110-16 PPTC resettable fuse is a compact, surface-mount solution for protecting electronic circuits from overcurrent conditions. Designed for USB peripherals, mobile devices, and general electronics, this 16V, 1.1A fuse offers fast response to faults, low resistance, and long-term reliability without the need for replacement. Its small footprint and lead-free construction make it ideal for modern compact electronic designs.

SMD1206-110-16 PPTC Features

  • Rated Current (I_hold): 1.1A – Provides precise overcurrent protection for sensitive electronics.
  • High Surge Voltage Capability – Protects devices against unexpected voltage spikes.
  • Lead-Free & RoHS Compliant – Environmentally friendly, compatible with high-temperature soldering.
  • Compact SMD 1206 Package – Saves PCB space and enables flexible circuit design.
  • Fast Fault Response – Ensures rapid protection for USB ports, mobile devices, and peripherals.

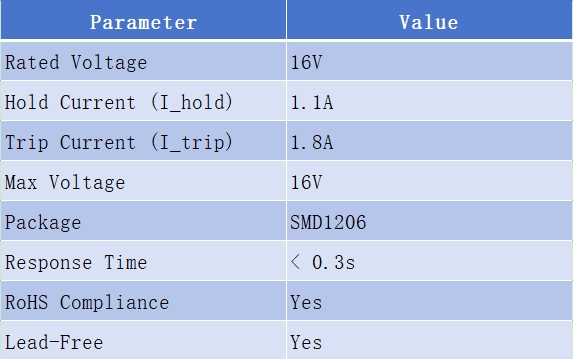

SMD1206-110-16 PPTC Technical Specifications

SMD1206-110-16 SMD1206P110/16 - 1.1A Resettable Fuse for Overcurrent Protection | Full Guide-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

SMD1206-110 PPTC Fuse Applications

The SMD1206-110 is ideal for protecting a wide range of electronics, including:

Consumer & Portable Devices

  • Mobile phones
  • PDAs / digital cameras
  • MID (Mobile Internet Devices)

Computer & Peripheral Devices

  • USB peripherals
  • Plug-and-play external devices
  • Disk drives / CD-ROM drives

Entertainment Electronics

  • Game console ports
  • Set-top boxes
  • HDMI interface protection

💡 If you're looking for reliable PPTC resettable fuses for your next design, Semiware provides a full portfolio of PTC solutions.👉https://en.semiware.com/product-pptc/smd1206-110-16/

Feel free to reach out if you need samples, technical support, or cross-reference recommendations.

📩sales29@semiware.com

FAQs

1.What is a PPTC fuse?

A PPTC fuse is a resettable overcurrent protection device that increases its resistance when excessive current flows and automatically resets after the fault is removed.

2.How does it compare to traditional fuses?

Traditional fuses are single-use and must be replaced after tripping, while PPTC fuses reset automatically and require no maintenance—ideal for consumer and portable electronics.

3.How does a PPTC fuse work?

During overcurrent, the polymer material heats up and expands, sharply increasing resistance to limit current. After cooling, it returns to its low-resistance state, restoring normal operation.

4.What is the difference between PPTC and PTC?

PPTC is a polymer-based PTC device designed specifically for resettable overcurrent protection, while standard PTC components are typically used for temperature sensing or inrush current limiting.

5.What is the difference between NTC and PTC?

NTC resistance decreases as temperature rises (used for sensing and inrush limiting), while PTC resistance increases with temperature (used for protection or heating functions).
