Standard Bidirectional Thyristor

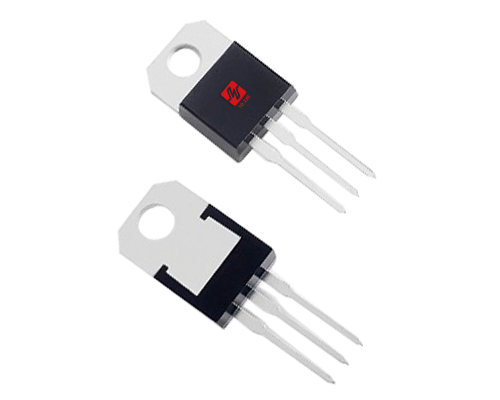

BTA24-600CWActive

The BTA24 600CW TRIAC is a high-performance semiconductor device designed for efficient AC load control in industrial and commercial applications. With a 24A current rating and 600V blocking voltage, this triac is ideal for switching high-power AC loads, including motors, heaters, and lighting systems.

Datasheet Inquire Now

Electrical Parameters

Part Number BTA24-600CW

Package TO-220A

VDRM [Min] (V)600

VRRM [Min] (V)600

IT(RMS) [Min] (A)24

ITSM [Min] (A)240

VTM [Max] (V)≤1.5

IGT_I [max] (mA) ≤35

IGT_II [max] (mA) ≤35

IGT_III [max] (mA) ≤35

Tj (°C) -40~+125

Status Active

Product Features

High On-State Current Low Thermal Resistance Low Gate Triggering Current Insulated Package Snubberless Design RoHS Compliant
