Standard Bidirectional Thyristor

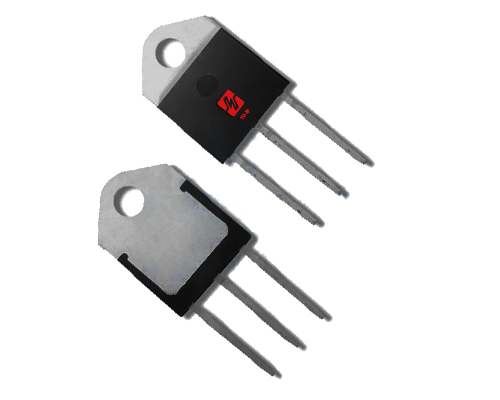

BTA41-1600BWActive

The BTA41-1600BW is a high-power AC triac designed for reliable switching and control of large AC loads. With a peak voltage rating of 1600V and continuous current up to 40A, it ensures stable operation in demanding environments. The TO-3P package provides excellent heat dissipation, while its low gate trigger current and bidirectional triggering allow flexible and energy-efficient control.

Datasheet Inquire Now

Electrical Parameters

Part Number BTA41-1600BW

Package TO-3P

VDRM [Min] (V)1600

VRRM [Min] (V)1600

IT(RMS) [Min] (A)40

ITSM [Min] (A)400

VTM [Max] (V)1.5

IGT_I [max] (mA) 35

IGT_II [max] (mA) 35

IGT_III [max] (mA) 35

Tj (°C) -40~+125

Status Active

Product Features

High Voltage Capability High Current Handling Bidirectional Triggering Low Gate Trigger Current BTA41-1600BW TO-3P Package Low Leakage Current
