Four-Quadrant Bidirectional Thyristor

BTA08-600CActive

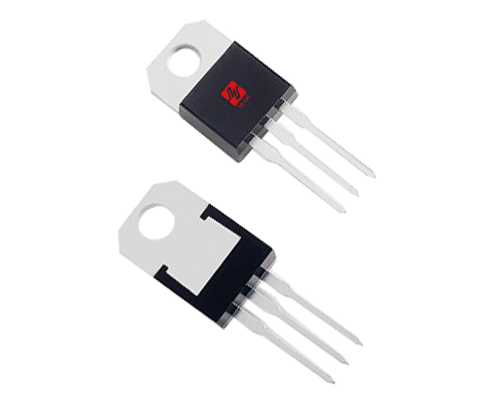

The BTA08-600C is a 8A, 600V triac designed for AC switching applications. It is widely used in motor control, lighting dimmers, heating systems, and other power regulation circuits.Its insulated tab package ensures electrical isolation and safety in compact designs.

Datasheet Inquire Now

Electrical Parameters

Part Number BTA08-600C

Package TO-220A

VDRM [Max] (V) 600

VRRM [Max] (V) 600

IT(RMS) [Min] (A) 8

ITSM [Min] (A) 80

VTM [Min] (V) 1.5

IGT_I [max] (mA) 25

IGT_II [max] (mA) 25

IGT_III [max] (mA) 25

IIGT_IV [max] (mA) 50

Tj (°C) -40~+125

Status Active

Product Features

High Current and Voltage Rating Low On-State Voltage Drop High Isolation Voltage Snubberless Operation Planar Passivated 4-Quadrant
