General-Purpose TVS Diode

5.0SMDJ33AActive

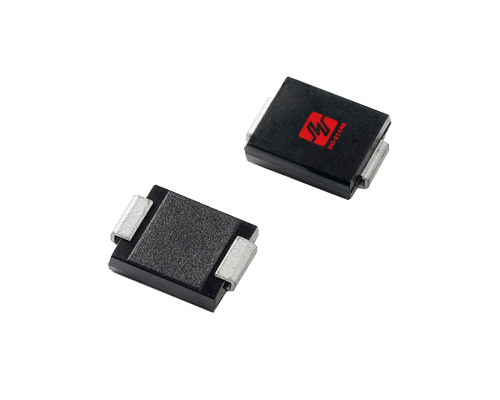

The 5.0SMDJ33A is a high-performance unidirectional Transient Voltage Suppression diode designed to protect sensitive electronic circuits from damaging voltage transients and electrostatic discharge events.Encased in a DO-214AB surface-mount package,the device is engineered for applications requiring robust over-voltage protection.With a 5000W peak pulse power rating,it provides superior protection against high-energy transient events that could otherwise damage electronic components.

Datasheet Inquire Now

Electrical Parameters

Part Number 5.0SMDJ33A

Package SMC

Polar Uni

Vrwm [Max] (V) 33

Vbr [Min] (V) 36.7

Vbr [Max] (V) 40.6

@ IT (mA)1

Vc@Ipp [Max] (V) 53.3

Ipp [Max] (A) 93.9

Ppp [Min] (W) 5000

IR [Max] (uA)5

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
