General-Purpose TVS Diode

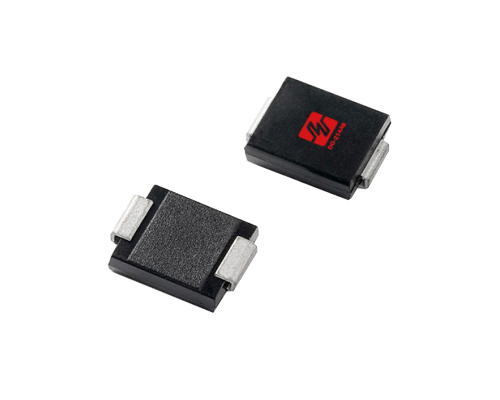

5.0SMDJ36CAActive

The 5.0SMDJ36CA is a bidirectional Transient Voltage Suppression diode designed for high-power protection applications. With exceptional clamping capability, ultra-fast response, and robust 5000W power rating, making it ideal for safeguarding sensitive components from voltage spikes induced by inductive load switching, lightning, or electrostatic discharge (ESD).

Datasheet Inquire Now

Electrical Parameters

Part Number 5.0SMDJ36CA

Package SMC

Polar Bi

Vrwm [Max] (V) 36

Vbr [Min] (V) 40

Vbr [Max] (V) 44.2

@ IT (mA)1

Vc@Ipp [Max] (V) 58.1

Ipp [Max] (A) 86.1

Ppp [Min] (W) 5000

IR [Max] (uA)5

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
