General-Purpose TVS Diode

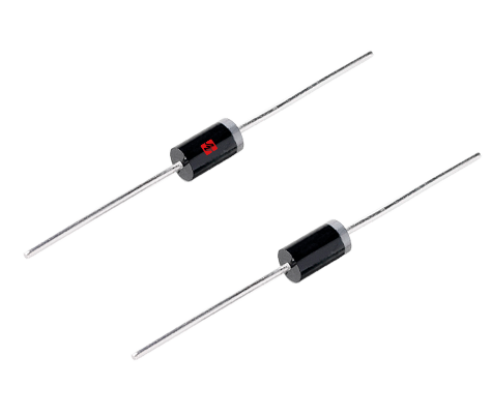

P6KE200AActive

The P6KE200A is a high-performance 600W transient voltage suppression diode designed to protect sensitive electronic circuits from voltage transients,electrostatic discharge (ESD),and electrical fast transients (EFT).Engineered for durability and fast response,it offers 200V standoff voltage,excellent clamping performance,and ultra-fast reaction time.Ideal for automotive,industrial,and telecom applications,the P6KE200A ensures stable operation and extended product life in demanding environments.

Datasheet Inquire Now

Electrical Parameters

Part Number P6KE200A

Package DO-15

Polar Uni

Vrwm [Max] (V) 171

Vbr [Min] (V) 190

Vbr [Max] (V) 210

@ IT (mA)1

Vc@Ipp [Max] (V) 274

Ipp [Max] (A) 2.2

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
