General-Purpose TVS Diode

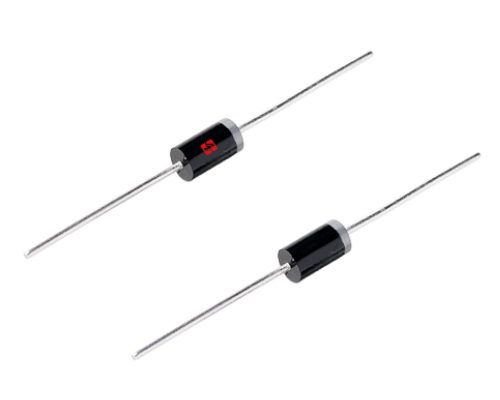

P6KE6.8AActive

The P6KE6.8A is a high-performance 600W transient voltage suppression diode designed to protect sensitive electronic circuits from voltage transients,electrostatic discharge (ESD),and electrical fast transients (EFT).Engineered for durability and fast response,it offers 6.8V standoff voltage,excellent clamping performance,and ultra-fast reaction time.Ideal for automotive,industrial,and telecom applications,the P6KE6.8A ensures stable operation and extended product life in demanding environments.

Datasheet Inquire Now

Electrical Parameters

Part Number P6KE6.8A

Package DO-15

Polar Uni

Vrwm [Max] (V) 5.8

Vbr [Min] (V) 6.45

Vbr [Max] (V) 7.14

@ IT (mA)10

Vc@Ipp [Max] (V) 10.5

Ipp [Max] (A) 58.1

Ppp [Min] (W) 600

IR [Max] (uA)1000

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
