General-Purpose TVS Diode

SMAJ5.0AActive

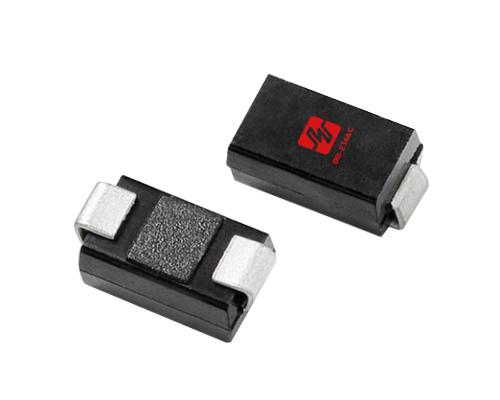

SMAJ5.0A is a uni-directional transient voltage suppression diode designed to protect sensitive electronic equipment from transient voltage surges such as ESD, lightning strikes or inductive load switching.The device adopts an industrial standard SMA package with high reliability and compact size, suitable for high-density PCB layout.

Datasheet Inquire Now

Electrical Parameters

Part Number SMAJ5.0A

Package SMA

Polar Uni

Vrwm [Max] (V) 5

Vbr [Min] (V) 6.4

Vbr [Max] (V) 7.0

@ IT (mA)10

Vc@Ipp [Max] (V) 9.2

Ipp [Max] (A) 43.5

Ppp [Min] (W) 400

IR [Max] (uA)800

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
