General-Purpose TVS Diode

SMBJ7.0AActive

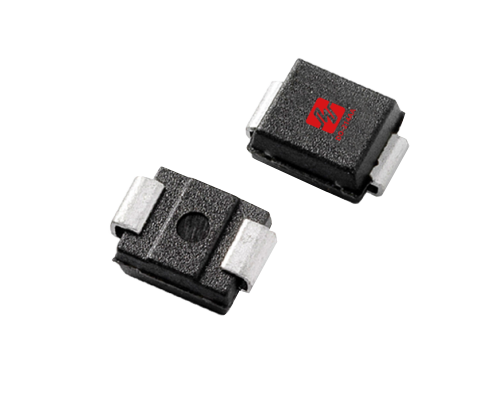

SMBJ7.0A is a surface mount transient voltage suppression diode designed to protect sensitive electronic equipment from transient voltages such as ESD, lightning strikes, and power surges. Its 7V breakdown voltage makes it an ideal choice for low voltage circuit protection and is widely used in communication equipment, consumer electronics, industrial control systems, and automotive electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number SMBJ7.0A

Package SMB

Polar Uni

Vrwm [Max] (V) 7

Vbr [Min] (V) 7.78

Vbr [Max] (V) 8.6

@ IT (mA)10

Vc@Ipp [Max] (V) 12

Ipp [Max] (A) 50

Ppp [Min] (W) 600

IR [Max] (uA)200

Tj (°C) -55~+150

Status Active

Product Features
