General-Purpose TVS Diode

SMCJ6.0CAActive

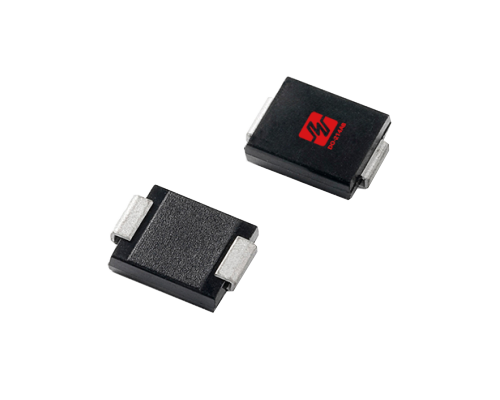

In modern electronic systems,surge protection is an important part of ensuring safe and stable operation of circuits.The SMCJ6.0CA is a high-power transient voltage suppressor diode housed in a surface-mount SMC (DO-214AB) package.It is widely used in various sensitive electronic devices to protect against transient over-voltage caused by lightning strikes, electrostatic discharge (ESD),switching operations,etc.

Datasheet Inquire Now

Electrical Parameters

Part Number SMCJ6.0CA

Package SMC

Polar Bi

Vrwm [Max] (V) 6

Vbr [Min] (V) 6.67

Vbr [Max] (V) 7.37

@ IT (mA)10

Vc@Ipp [Max] (V) 10.3

Ipp [Max] (A) 145.7

Ppp [Min] (W) 1500

IR [Max] (uA)800

Tj (°C) -55~+150

Status Active

Product Features

1500 Watt Peak Pulse Power Capability Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
