General-Purpose TVS Diode

SMF15CAActive

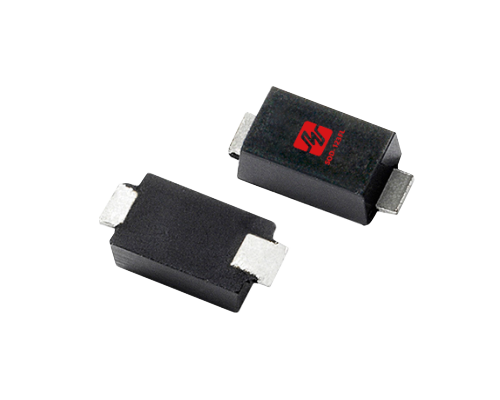

SMF15CA is a surface-mount TVS diode designed to safeguard sensitive electronics from ESD,voltage spikes,and transient surges.Encapsulated in a compact SOD-123FL package,it delivers fast response time,low clamping voltage,and strong surge handling performance.Compliant with IEC standards for ESD and surge immunity,the SMF15CA is an ideal solution for reliable circuit protection in space-limited applications.

Datasheet Inquire Now

Electrical Parameters

Part Number SMF15CA

Package SOD-123FL

Polar Bi

Vrwm [Max] (V) 15

Vbr [Min] (V) 16.7

Vbr [Max] (V) 18.5

@ IT (mA)1

Vc@Ipp [Max] (V) 24.4

Ipp [Max] (A) 8.2

Ppp [Min] (W) 200

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
