General-Purpose TVS Diode

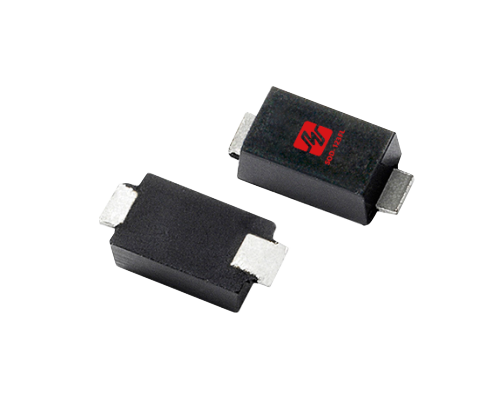

SMF36AActive

SMF36A is a unidirectional TVS diode engineered to safeguard sensitive circuits against voltage transients induced by lightning strikes,ESD (electrostatic discharge), and inductive load switching.Featuring a 36V stand-off voltage and a 200W peak pulse power rating (10/1000µs),it delivers reliable over-voltage protection for consumer electronics,industrial control,automotive,and communication interfaces.

Datasheet Inquire Now

Electrical Parameters

Part Number SMF36A

Package SOD-123FL

Polar Uni

Vrwm [Max] (V) 36

Vbr [Min] (V) 40

Vbr [Max] (V) 44.2

@ IT (mA)1

Vc@Ipp [Max] (V) 58.1

Ipp [Max] (A) 3.4

Ppp [Min] (W) 200

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
