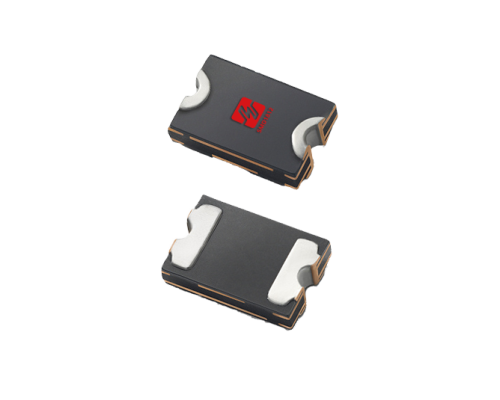

PTC Resettable Fuse

SMD2920-400/24Active

The SMD2920-400/24 PTC product possesses the physical characteristic of self-recovery and is widely applied in industries such as consumer electronics, computers, lighting, and instrumentation for overcurrent protection.

Datasheet Inquire Now

Electrical Parameters

Part Number SMD2920-400/24

Package SMD2920

IHOLD [Max] (A) 4

ITRIP [Min] (A) 8

VMAX (V) 24

IMAX (A) 50

Time to trip Current (A) 20

Time to trip Time (S) 7

RMIN (Ω) 0.002

R1MAX (Ω) 0.012

Status Active

Product Features

Very high voltage surge capabilities Very high voltage surge capabilities Fast response to fault current
