Voltage Regulator Diode

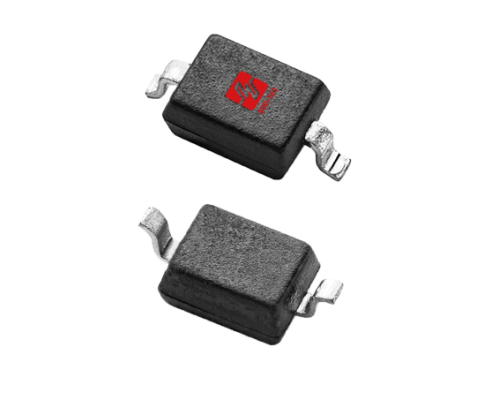

BZT52B2V4Active

BZT52B2V4 Zener Diode provides precise 2.4V voltage regulation by maintaining a stable reverse breakdown voltage, protecting circuits from overvoltage and voltage fluctuations. It is ideal for reference voltage sources,low-power power supplies,microcontroller circuits,and sensor signal conditioning applications.

Datasheet Inquire Now

Electrical Parameters

Part Number BZT52B2V4

Package SOD-123

AEC-Q101 Qualified No

VZ [Nom] (V) 2.4

VZ [Min] (V) 2.35

VZ [Max] (V) 2.45

IZT (mA) 5

PD [Max] (W) 0.5

VF [Max] (V) 0.9

IR [max] (uA) 50

TJ (°C) -55~+150

Status Active

Product Features

Planar Die Construction 500 mW Power Dissipation on Ceramic PCB Operating Temperature Range: -55°C to +150°C Ideally Suited for Automated Assembly Processes Low Leakage Current BZT52B2V4 RoHS Compliant
