Voltage Regulator Diode

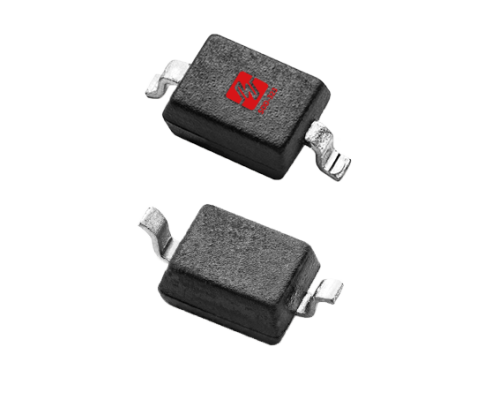

BZT52C12Active

BZT52C12 Zener Diode provides precise 12V voltage regulation by clamping reverse voltage,ensuring stable operation and protecting sensitive components from voltage transients. Ideal for reference voltage circuits, power supply stabilization,and industrial control electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number BZT52C12

Package SOD-123

AEC-Q101 Qualified No

VZ [Nom] (V) 12

VZ [Min] (V) 11.4

VZ [Max] (V) 12.7

IZT (mA) 5

PD [Max] (W) 0.5

VF [Max] (V) 0.9

IR [max] (uA) 0.1

TJ (°C) -65~+165

Status Active

Product Features

Planar Die Construction 500 mW Power Dissipation on Ceramic PCB Operating Temperature Range: -65°C to +165°C Ideally Suited for Automated Assembly Processes Low Leakage Current BZT52C12 RoHS Compliant
