Zener Diode

BZT52C5V1SActive

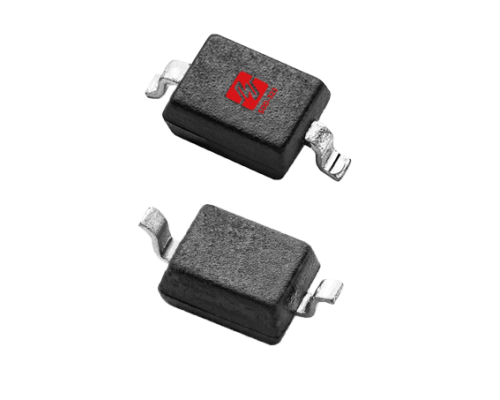

The BZT52C5V1S is a 5.1V Zener diode in a compact SOD-323 surface-mount package. It provides reliable voltage regulation and transient protection for a wide range of applications,including consumer electronics,power management,and portable devices.

Datasheet Inquire Now

Electrical Parameters

Part Number BZT52C5V1S

Package SOD-323

AEC-Q101 Qualified No

VZ [Nom] (V) 5.1

VZ [Min] (V) 4.8

VZ [Max] (V) 5.4

IZT (mA) 5

PD [Max] (W) 0.2

VF [Max] (V) 0.9

IR [max] (uA) 2

TJ (°C) -55~+150

Status Active

Product Features

Planar Die Construction 200mW Power Dissipation on Ceramic PCB Operating Temperature Range: -55°C to +150°C SOD-323 Package Ideally Suited for Automated Assembly Processes Low Leakage Current BZT52C5V1S RoHS Compliant
