Rectifier Diode

1N4004Active

The 1N4004 diode is a reliable rectifier diode rated at 400V and 1A, commonly used in power supplies, adapters, chargers, and general electronic protection circuits.It features a low forward voltage drop, and strong surge capability, ensuring efficient operation in both industrial and consumer electronic applications.

Datasheet Inquire Now

Electrical Parameters

Part Number 1N4004

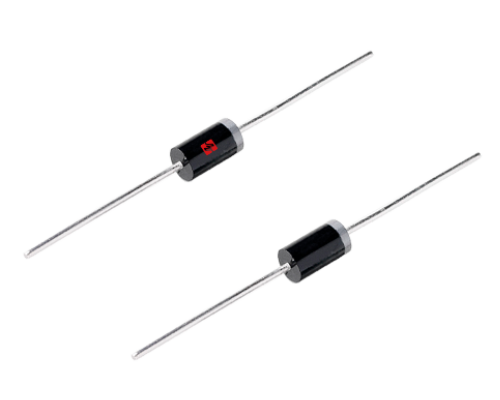

Package DO-41

AEC-Q101 Qualified No

VRRM [Max] (V) 400

VRMS [Max] (V) 280

IF(AV) [Max] (A) 1

IFSM [Max] (A) 30

VF [Max] (V) 1

Trr [Max] (ns) -

IR [max] (mA) 0.005

Cj [Typ] (PF) 21

TJ (°C) -55~+150

Status Active

Product Features

High Current Capability Low Forward Voltage Drop Low Reverse Leakage Fast Recovery Time Open Junction Chip 1N4004 ROHS Compliant
