Rectifier Diode

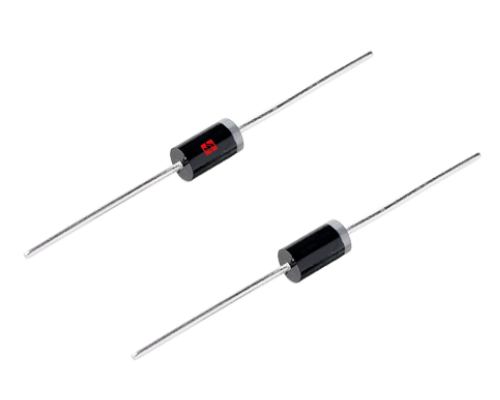

1N4007Active

The 1N4007 is a high-performance rectifier diode rated for 1000V and 1A, perfect for AC to DC conversion,reverse polarity protection,and bridge rectifier designs.With high reliability, low cost, and high surge current capability,it is commonly found in power adapters,battery chargers,and other electronic devices.

Datasheet Inquire Now

Electrical Parameters

Part Number 1N4007

Package DO-41

AEC-Q101 Qualified No

VRRM [Max] (V) 1000

VRMS [Max] (V) 700

IF(AV) [Max] (A) 1

IFSM [Max] (A) 30

VF [Max] (V) 1

Trr [Max] (ns) -

IR [max] (mA) 0.005

Cj [Typ] (PF) 21

TJ (°C) -55~+150

Status Active

Product Features

High Current Capability Low Forward Voltage Drop Low Reverse Leakage Fast Recovery Time Open Junction Chip ROHS Compliant
