CVBS

Build Semiware into your application circuit

Summary Circuit Diagram Documents Others

Summary

Although CVBS (Composite Video Baseband Signal) is called an "analog video cable," it is essentially a weak analog channel for long-distance transmission. Its surge protection is very poor, and it is often connected to the power supply and chassis ground, making it an easy "bypass" for surges entering the system.

Test Standard
10/700μs-5/320μs CM 6kV-150A

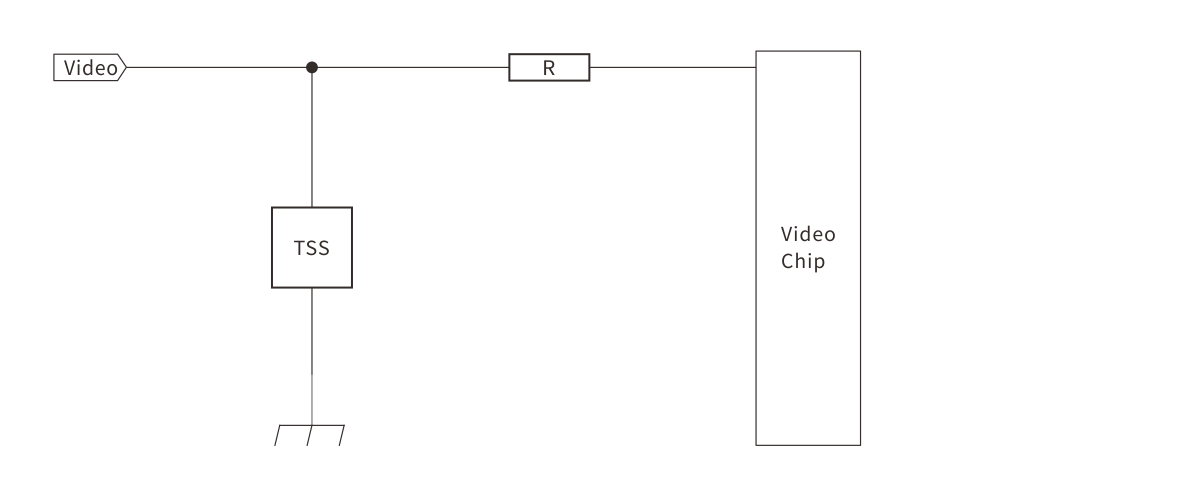

Application Circuit Diagram

Find products and reference designs suitable for your system

CVBS
TSS
