DC110V-6KV

Build Semiware into your application circuit

Summary Circuit Diagram Documents Others

Summary

While a 110V DC power supply isn't the primary source of AC power like a 220V AC power supply, it's often the main power source for control, protection, communication, and critical actuators in many systems. Damage from surges can be just as devastating. The risks primarily stem from three sources: the power supply side, the load side, and environmental coupling.

Testing Standard:
1.2/50μs-8/20μs CM/DM 6kV-3kA

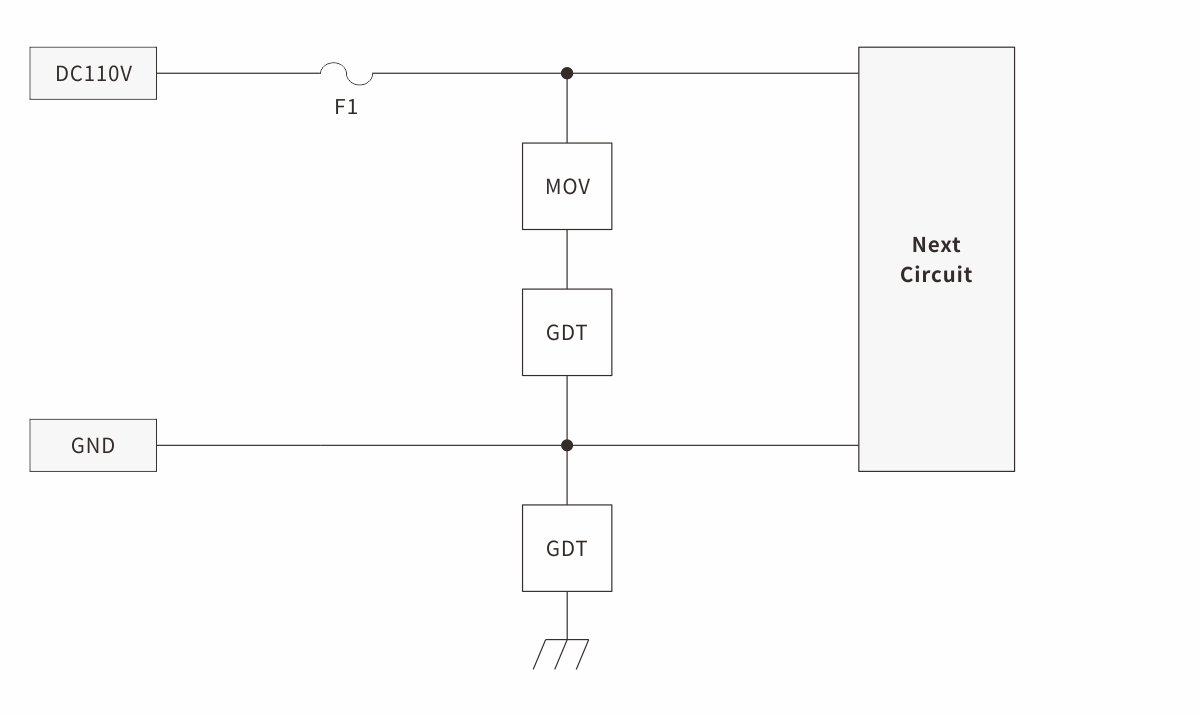

Application Circuit Diagram

Find products and reference designs suitable for your system

DC110V-6KV
