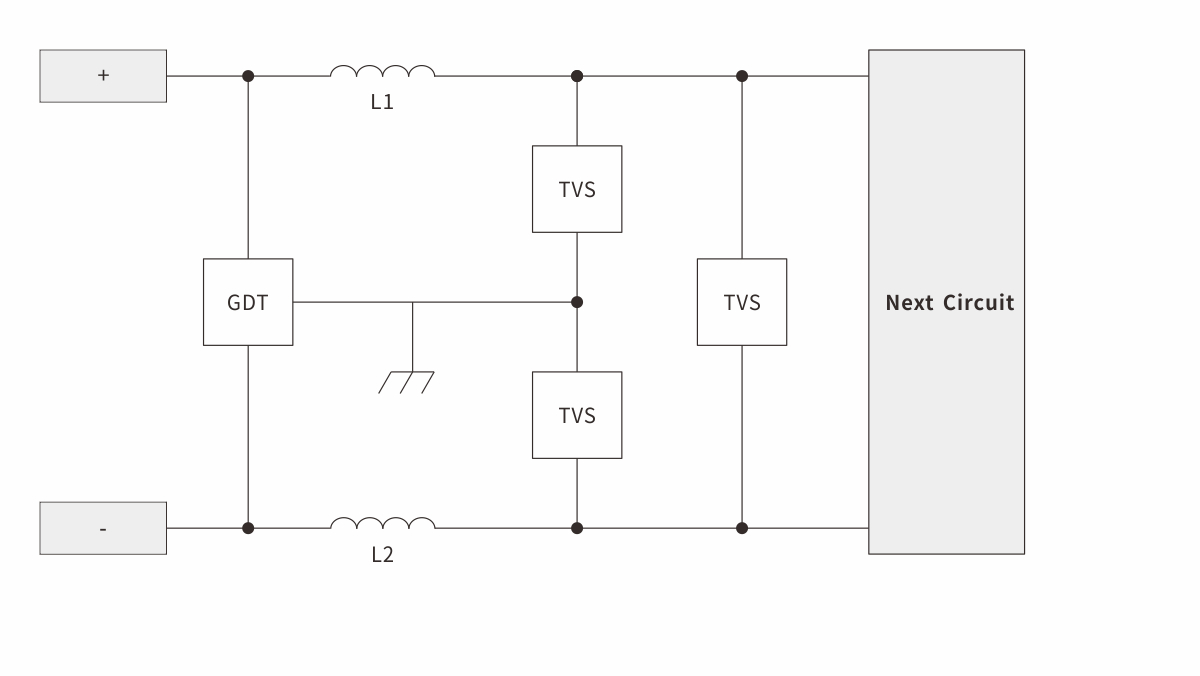

DC12V-6KV
Build Semiware into your application circuit
Summary
Although the DC 12V power port may seem like just a "power supply port," in actual products, when users plug and unplug adapters, power cords, or connectors, their fingers or the metal parts of the plugs will directly contact the metal pins of the DC socket. Moreover, because the power port is directly connected to the system power rail, damage from ESD often has a greater impact than that from a data port.
Test Level：
1.2/50μs-8/20μs CM 6kV-500A DM 4kV-2kA
