DC24V-P5a

Design Semiware into your application circuit

Summary Application Circuit Diagram Documents Other

Summary

In automotive electronic systems, load dump at the 24V power port (commonly found in commercial vehicles, trucks, etc.) is a critical electrical transient phenomenon that can cause serious damage to electronic equipment.

Test Level：P5a 101V 4Ω 400ms

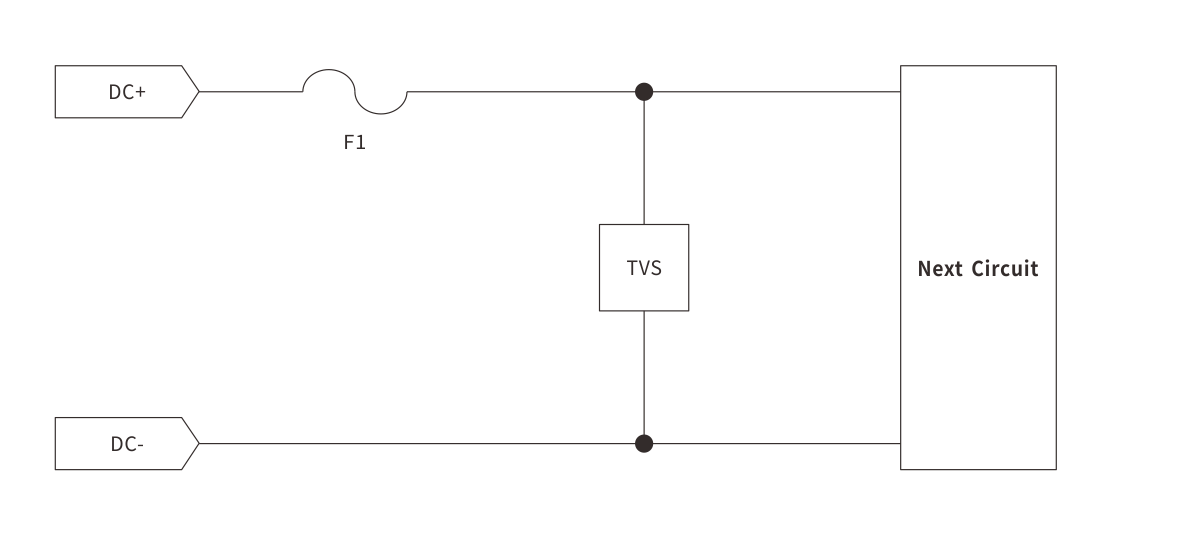

Application Circuit Diagram

Find products and reference designs suitable for your system

DC24V-P5a
TVS
Product Reference Design

SM8S36A-Automotive TVS Diode36V,6600W,AEC-Q101,DO-218AB

SMD8S36A-Automotive TVS Diode36V,6600W,AEC-Q101,DO-218Mini

Other Related

DC12V-P5a DC12V-P5b CAN KEY LIN
