eSATA

Build Semiware into your application circuit

Summary Application Circuit Diagram Documents Other

Summary

eSATA (External Serial ATA) is an external high-speed data interface used to connect an external hard drive to the SATA controller of a computer motherboard. Because it is exposed to the external environment and frequently plugged in and out, it is vulnerable to electrostatic discharge (ESD) threats.

Test standard: IEC61000-4-2 Contact-8kV Air-15kV

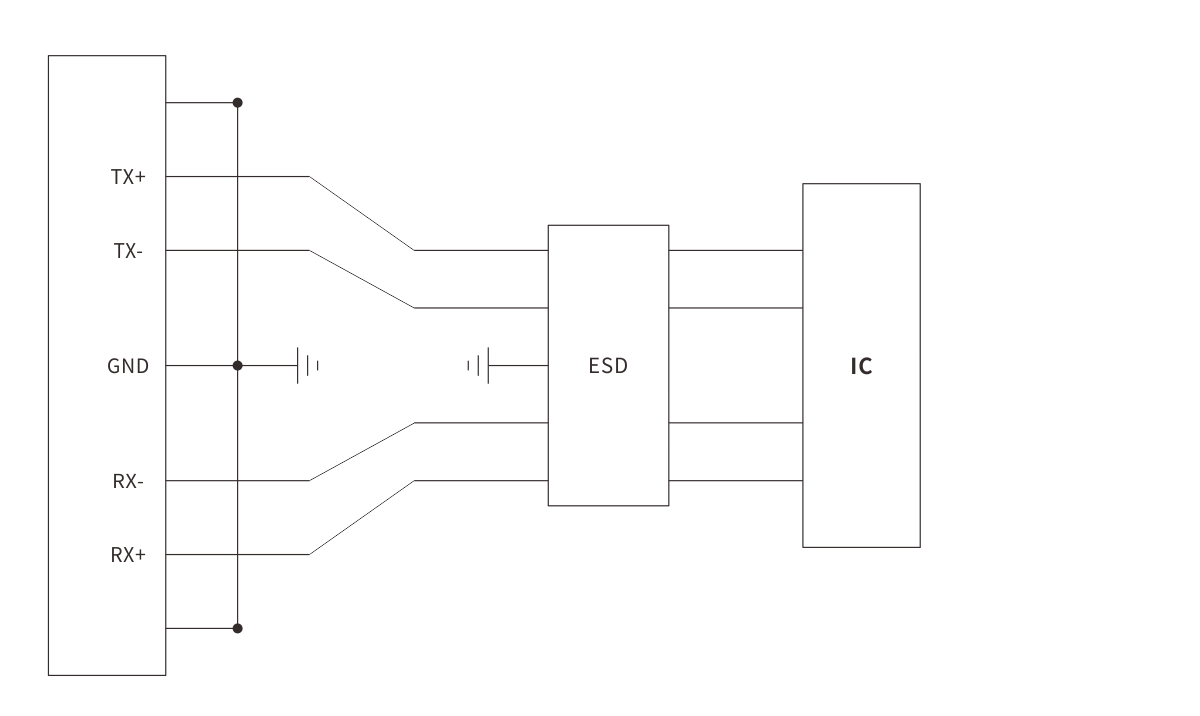

Application Circuit Diagram

Find products and reference designs suitable for your system

eSATA
ESD
Product Reference Design

SEULC0524PA TVS Diode Array5.0V, 4.0A@8/20uS, ±8KV, 0.6pF, DFN2510-10L

Other Related

Touch Screen SD Card SIM NFC MIC Audio GPS
