VGA

Design Semiware into your application circuit

Summary Application Circuit Diagram Documents Other

Summary

The VGA (Video Graphics Array) interface is susceptible to electrostatic discharge (ESD) in actual applications, especially when plugging and unplugging cables or touching ports. If not protected, ESD may damage the VGA interface chip or other electronic components, causing system instability or failure. Therefore, it is necessary to provide electrostatic protection for the VGA interface.

Test Level：Contact-8kV Air-15kV

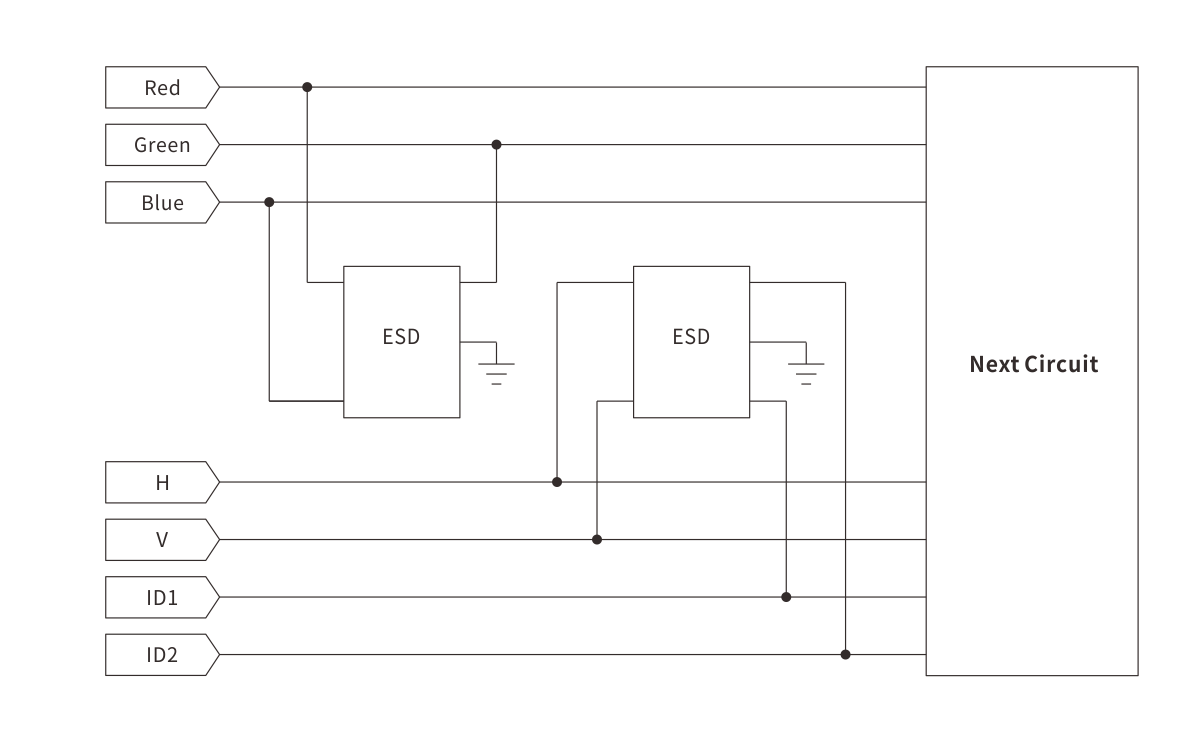

Application Circuit Diagram

Find products and reference designs suitable for your system

VGA
ESDESD
Product Reference Design

SESRV05-4A-ESD Diode5V, 4A, 0.8pF, ±15KV, SOT23-6L
Product Reference Design

SESRV05-4A-ESD Diode5V, 4A, 0.8pF, ±15KV, SOT23-6L

Other Related

USB2.0-Dual RS232-ESD RS232-ESD/Surge HDMI eSATA USB3.0 USB2.0
