Schottky Diode

MBR10150CTActive

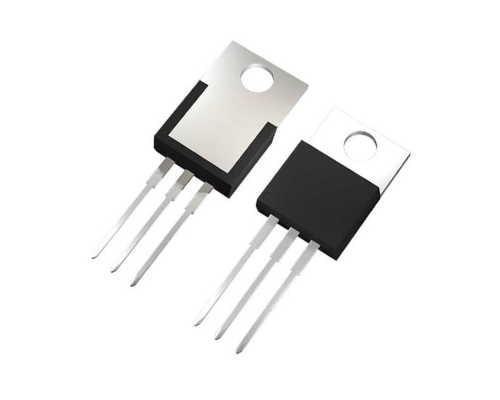

The MBR10150CT is a high-performance Schottky barrier diode in a TO-220AB package, featuring low forward voltage drop (VF) and ultra-fast switching, making it ideal for switch-mode power supplies, DC-DC converters, inverters, and high-frequency rectification. Its dual common-cathode design ensures high current handling with a 10A forward current and 150V reverse voltage, minimizing power loss and improving system efficiency.

Datasheet Inquire Now

Electrical Parameters

Part Number MBR10150CT

Package TO-220AB

AEC-Q101 Qualified No

VRRM [Max] (V) 150

VRMS [Max] (V) 105

IO [Max] (A) 10

IFSM [Max] (A) 100

VF [Max] (V) 0.9

IR [max] (mA) 0.05

TJ (°C) -55~+175

Status Active

Product Features

Low Forward Voltage Drop High Current Handling Fast Switching Low Power Loss Low Reverse Leakage Current TO-220AB Package
