Standard Unidirectional Thyristor

TYN640Active

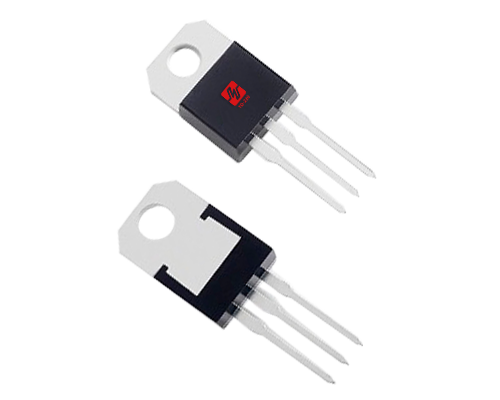

The TYN640 is a robust 600V, 40A Silicon Controlled Rectifier designed for high-voltage switching and power control applications. Its TO-220A package provides efficient thermal management and easy integration into heat sinks or power assemblies, making it suitable for compact or thermally challenging designs.

Datasheet Inquire Now

Electrical Parameters

Part Number TYN640

PackageTO-220A

VDRM [Min] (V)600

VRRM [Min] (V)600

IT(RMS) [Min] (A)40

ITSM [Min] (A) 460

VTM [Min] (V) ≤1.55

IGT [Max] (mA) ≤35

Tj (°C) -40~+125

Status Active

Product Features

High Voltage Capability Low Gate Current Robust Switching Performance Standard TO-220A Package Cost-Effective Reliability RoHS Compliant
