Standard Unidirectional Thyristor

TYN840Active

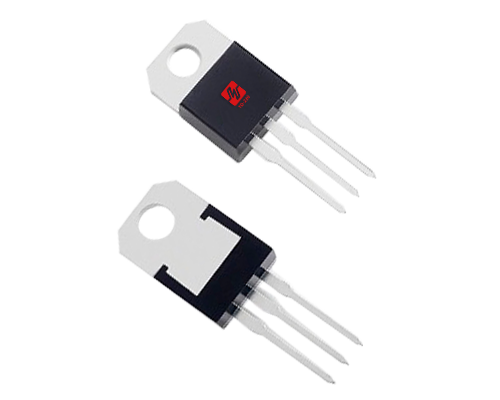

The TYN840 is a robust 800V, 40A Silicon Controlled Rectifier designed for high-voltage switching and power control applications. Its TO-220A package provides efficient thermal management and easy integration into heat sinks or power assemblies, making it suitable for compact or thermally challenging designs.

Datasheet Inquire Now

Electrical Parameters

Part Number TYN840

PackageTO-220A

VDRM [Min] (V)800

VRRM [Min] (V)800

IT(RMS) [Min] (A)40

ITSM [Min] (A) 460

VTM [Min] (V) ≤1.55

IGT [Max] (mA) ≤35

Tj (°C) -40~+125

Status Active

Product Features

High Voltage Capability Low Gate Current Robust Switching Performance Standard TO-220A Package Cost-Effective Reliability RoHS Compliant
