GBLC05CI

Overview Parameters Features Applications Documents

TVS Diode Array

GBLC05CIActive

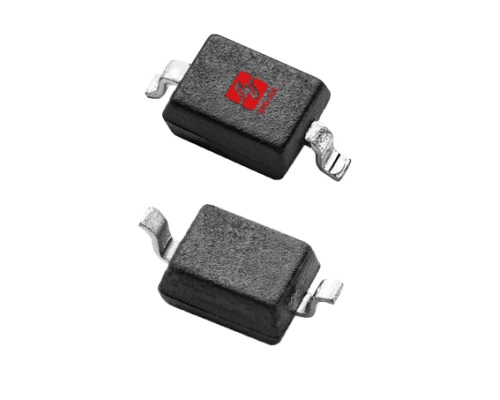

The GBLC05CI TVS diode array delivers powerful transient voltage suppression in an ultra-small SOD-323 package,making it the ideal solution for space-constrained,high-performance electronics.With up to 350W peak pulse power,ultra-fast response time,and low clamping voltage,this device ensures your sensitive components stay safe from ESD strikes,surges,and transients.Ideal for applications such as USB ports,RS-485 interfaces,mobile devices,and automotive electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number GBLC05CI
Package SOD-323
Vrwm [Max] (V) 5.0
Vbr [Min] (V)6.0
Vc@Ipp [Max] (V)25
Ipp [Max] (A)14
Vesd [Contact] (KV)±30
Vesd [Air] (KV)±30
IR [max] (uA)0.2
Cj [max] (pF)1.5
TJ (°C)-55~+150
Status Active

Product Features

Low Clamping Voltage Low Ieakage current Fast Response Time 350W Peak Pulse Power Ultra Low Capacitance IEC 61000-4-2 Compliance

Applications

IP Camera xDSL Set-top Box Smart Watch
