TVS Diode Array

SE06F06B24UA-SPActive

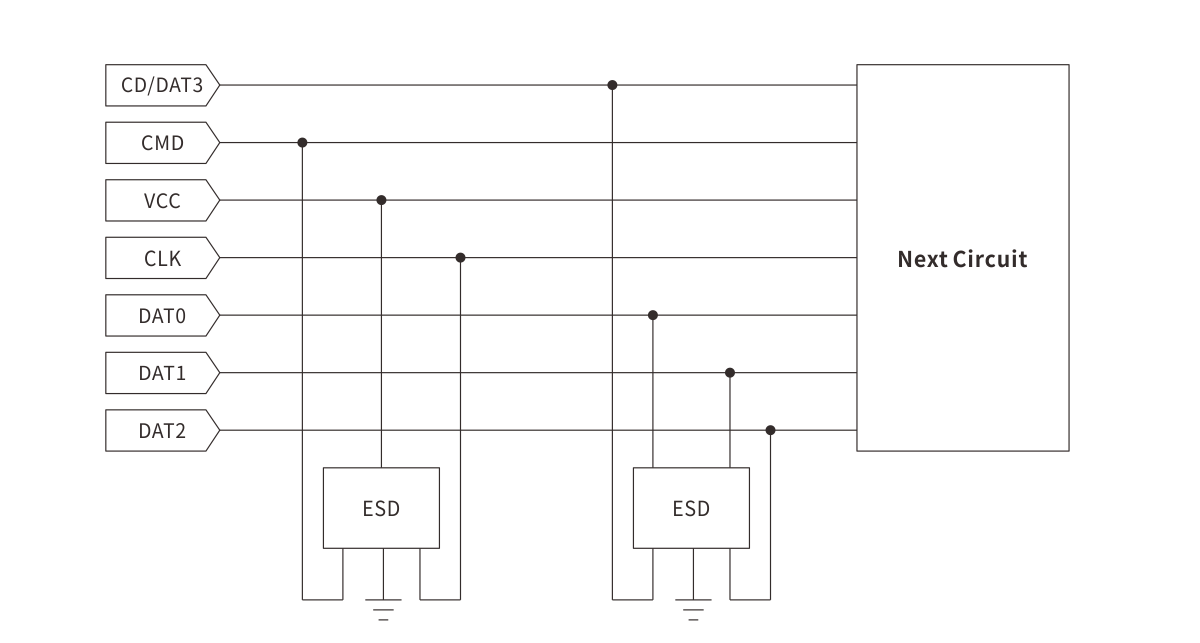

The SE06F06B24UA-SP low capacitance ESD diode products adopt DFN0603-2L micro package, with junction capacitance as low as 0.3pF, small leakage current, fast response speed and high reliability. It is widely considered as the electrostatic protection of high-speed signal transmission interfaces such as USB3.0, HDMI2.0 and Thunderbolt, protecting each input/output pin and providing high-level protection for electronic devices that may suffer destructive electrostatic discharge (ESD).

Datasheet Inquire Now

Electrical Parameters

Part Number SE06F06B24UA-SP

Package DFN0603-2L

Vrwm [Max] (V) 24

Vbr [Min] (V)25.5

Vc@Ipp [Max] (V)7

Ipp [Max] (A)9

Vesd [Contact] (KV)±15

Vesd [Air] (KV)±15

IR [max] (uA)0.1

Cj [max] (pF)0.3

TJ (°C)-55～+125

Status Active

Product Features

Fast turn-on and low clamping voltage Junction capacitance as low as 0.3pF Response Time is Typically <1 ns IEC 61000-4-2 (Air) : ±15kV IEC 61000-4-2 (Contact) : ±15kV RoHS compliant
