TVS Diode Array

SE10F10B5.0MAActive

The SE10F10B5.0MA is an ultra-low capacitance Electrostatic Discharge (ESD) protection device,designed specifically for high-speed data interfaces.This device provides robust protection for sensitive components against over-voltage events caused by Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Events (CDE).

Datasheet Inquire Now

Electrical Parameters

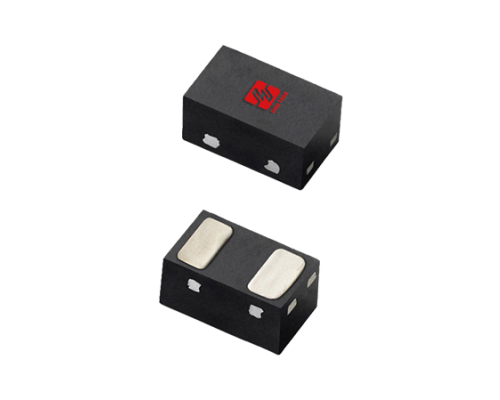

Part Number SE10F10B5.0MA

Package DFN1006-2L

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)25

Ipp [Max] (A)4

Vesd [Contact] (KV)±15

Vesd [Air] (KV)±15

IR [max] (uA)1

Cj [max] (pF)1

TJ (°C)-55～+150

Status Active

Product Features

Low Clamping Voltage Low Leakage Current Protects One I/O Line Ultra-low Capacitance IEC61000-4-4 (EFT) 40A ROHS Compliant
