Four-Quadrant Triac

BT136S-600Active

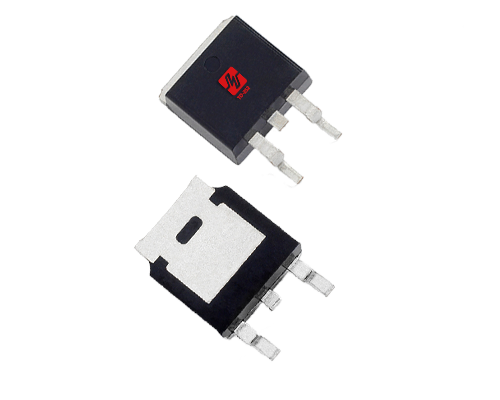

The BT136S-600 is a four-quadrant bidirectional triac housed in a standard TO-252 package. It simplifies thermal management and enhances surge handling capabilities in AC power control applications, making it widely suitable for use in heater control, motor speed control, lighting control, and static switching relays.

Datasheet Inquire Now

Electrical Parameters

Part Number BT136S-600

Package TO-252

VDRM [Max] (V) 600

VRRM [Max] (V) 600

IT(RMS) [Min] (A) 4

ITSM [Min] (A) 35

VTM [Min] (V) 1.6

IGT_I [max] (mA) 35

IGT_II [max] (mA) 35

IGT_III [max] (mA) 35

IIGT_IV [max] (mA) 70

Tj (°C) -40~+125

Status Active

Product Features

The BT136S-600 can be triggered directly by low-power drivers and logic ICs. TO-252 SMD package. High blocking voltage capability. Supports four-quadrant triggering. Utilizes planar passivation technology to ensure voltage withstand capability and reliability. Suitable for low-current loads with extremely low EMI during commutation
