Introduction
With the development of smart display devices, industrial control equipment, automotive electronics, and consumer electronics, audio/video interfaces have become an important connection method for data transmission between devices.
HDMI, MIPI, LVDS, DVI, and VGA interfaces are widely used in displays, camera equipment, smart terminals, and industrial equipment.
I. Major Electrical Threats Faced by Audio/Video Interfaces
| Threat | Main Causes | Potential Impact |
| Electrostatic Discharge (ESD) | Human contact, cable insertion/removal | IC damage, interface failure |
| Electrical Fast Transient (EFT) | Switching circuits, relays, motors | Communication errors, system instability |
| Surge Transient | Lightning events, power disturbances | Component damage |
| EMI Noise | High-frequency switching and signals | Signal degradation |
II. ESD Protection Design Requirements for High-Speed Audio/Video Interfaces
2.1 Low Junction Capacitance to Ensure High-Speed Signal Integrity
For high-speed differential signal interfaces, the parasitic capacitance of the protection device can affect signal transmission.
For example:
- HDMI 2.0 transmission rates reach up to 18Gbps.
- MIPI interface rates can reach Gbps levels.
- LVDS is widely used for high-speed display transmission.
If the capacitance of the ESD device is too high, it will lead to:
- Signal attenuation
- Eye diagram deterioration
- Data errors
2.2 Low clamping voltage, reducing chip damage risk
ESD transient voltages can reach thousands of volts. If the protection device cannot respond quickly, the excessive residual voltage will enter the back-end IC.
Requirements for selecting ESD protection">ESD protection devices:
- Fast response time
- Low dynamic resistance
- Low clamping voltage
III. Common Audio/Video Interface ESD Protection Solutions

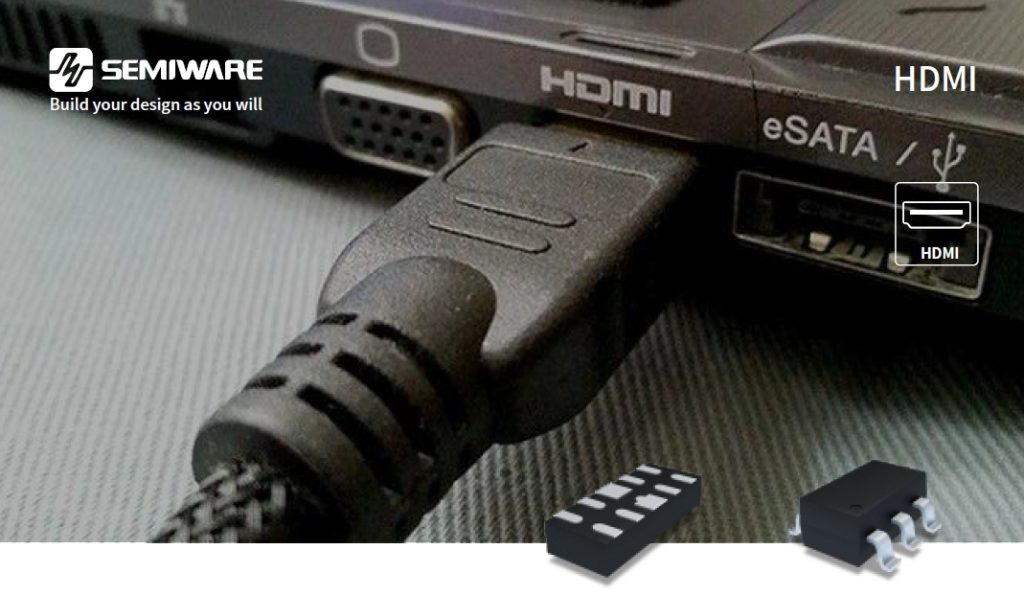

- HDMI Interface ESD Protection Solution
HDMI (High Definition Multimedia Interface) is one of the most widely used digital audio/video interfaces, widely used in:
- Monitors
- TVs
- Gaming devices
- Industrial display terminals
The high-speed differential signal (TMDS) in the HDMI interface is very sensitive to parasitic capacitance, therefore the protection solution needs to consider:
Recommended: Ultra-low capacitance + multi-channel integrated ESD protection">ESD protection diode
- MIPI Interface ESD Protection Solution
MIPI (Mobile Industry Processor Interface) is widely used in:
- Smartphones
- Camera modules
- Automotive displays
- Industrial vision equipment
Because MIPI uses high-speed differential transmission, it places higher demands on protection devices.
Design Highlights:
- Extremely low parasitic capacitance
- Miniaturized package
- Low leakage current
Recommended: DFN0603, DFN1006 ultra-small package low-capacitance ESD devices
- LVDS Interface ESD Protection Solution
LVDS (Low Voltage Differential Signaling) is a high-speed differential signal transmission technology commonly used in:
- Industrial displays
- Medical equipment
- Automotive display systems
Design Highlights:
- Low capacitance
- Low clamping voltage
- Good EMI performance
Semiware low-capacitance ESD protection">ESD protection devices can reduce the impact on LVDS signals while meeting the IEC61000-4-2 standard.

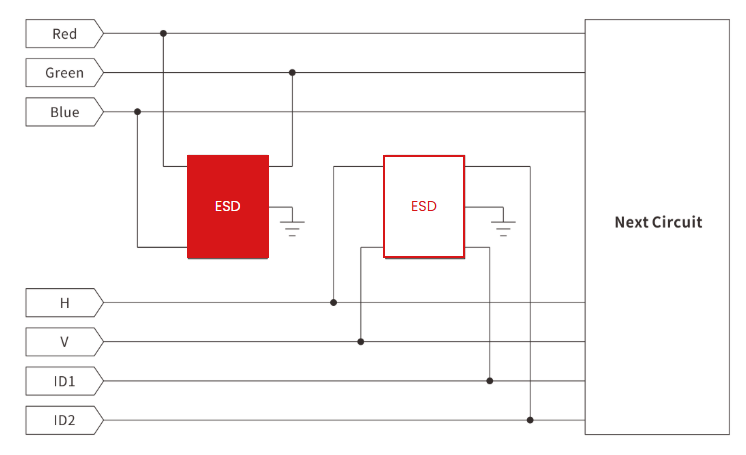

- DVI/VGA Interface ESD Protection Scheme
Although VGA is a relatively traditional analog video interface, it is still widely used in:
- Industrial equipment
- Educational equipment
- Commercial display equipment
Compared to high-speed digital interfaces, VGA has relatively lower capacitance requirements, but it still needs to be protected against ESD from hot-plugging.
ESD protection" class="wp-image-18084" style="width:657px;height:auto"/>The DVI interface contains both digital signals and high-speed transmission channels, therefore, the protection design needs to focus on:
- Signal integrity
- Low capacitance
- Multi-channel protection
ESD protection" class="wp-image-18083" style="aspect-ratio:2.135836658061488;width:735px;height:auto"/>For detailed wiring diagrams and recommended components, please contact us.
